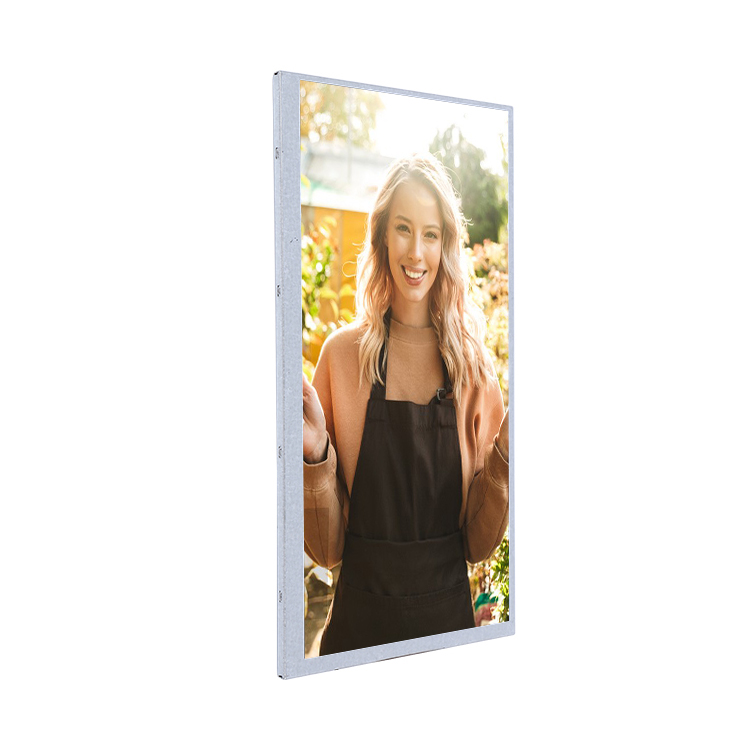

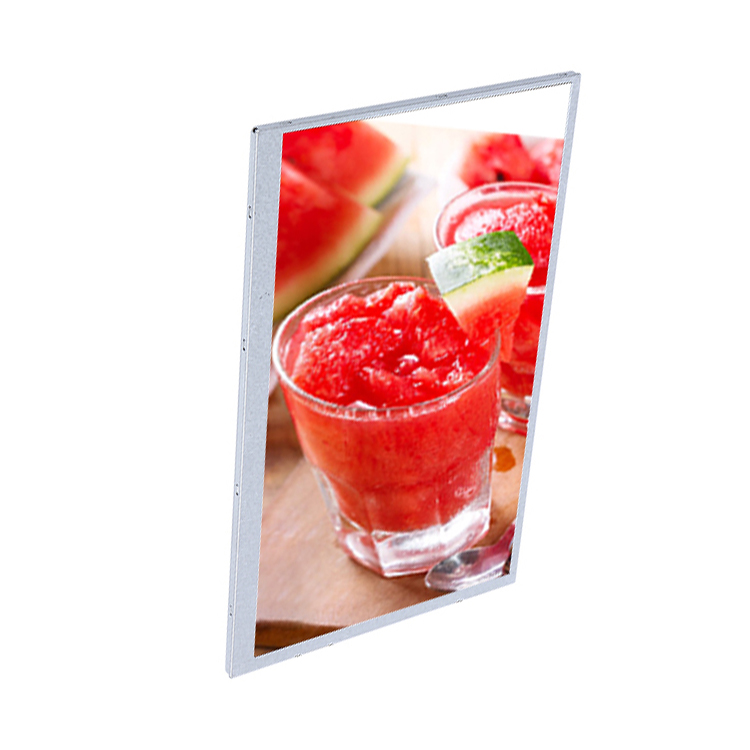

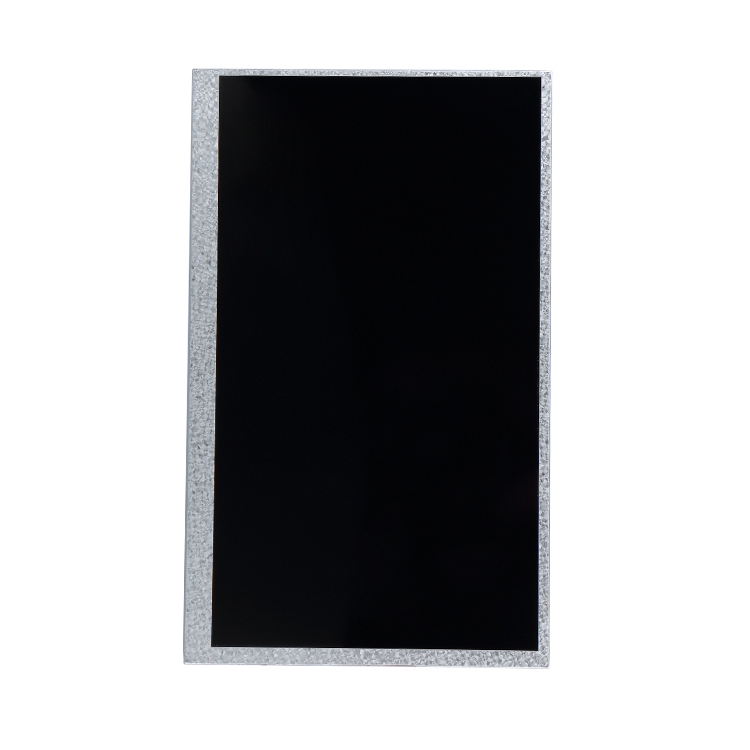

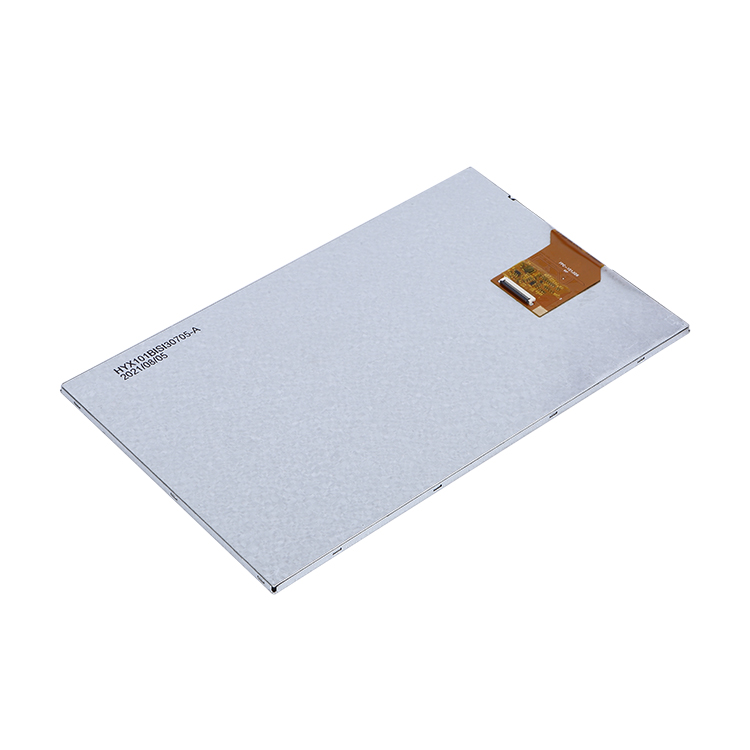

10.1 Inch LCD module Intelligent Display Terminal Support MIPI Interface

General Specifications

No.

Item

Specification

1

LCD Size

10.1 inch

2

Driver Element

a-Si TFT active matrix

3

Number of Pixels

720 × (RGB) × 1280

4

Display Mode

Normally BLACK

5

Pixel Pitch

0.174(H) x 0.174(V) mm

6

LCD Type

IPS

7

Brightness

450

8

Active Area

125.28(W) ×222.72(H) mm

9

Module Size

143(W) ×235(H) ×4.5(D) mm

10

View Direction

ALL

11

Viewing angle

80/80/80/80

12

Surface Treatment

Anti-Glare

13

Color Arrangement

RGB-stripe

14

Interface

MIPI

15

LCM Power Consumption

5.3W

16

Drive IC

SC7705

Pin Assignment

Pin No

Symbol

I/O

Function

1

NC

-

No connect

2

VCI

P

Power Supply For LCD

3

IOVCC

p

Power supply for logic circuit.

4

GND

P

ground

5

RESET

 I

 Global reset pin.

6

NC

-

No connect

7

GND

P

 ground

8

MIPI_0N

I

Negative polarity of low voltage differential data 0 signal

9

MIPI_0P

I

Positive polarity of low voltage differential data 0 signal

10

GND

P

 ground

11

MIPI_1N

I

Negative polarity of low voltage differential data 1 signal

12

MIPI_1P

I

Positive polarity of low voltage differential data 1 signal

13

GND

P

 ground

14

MIPI_CKN

I

Negative polarity of low voltage differential clock signal

15

MIPI_CKP

I

Positive polarity of low voltage differential clock signal

16

GND

P

 ground

17

MIPI_2N

I

Negative polarity of low voltage differential data 2 signal

18

MIPI_2P

I

Positive polarity of low voltage differential data 2 signal

19

GND

P

 ground

20

MIPI_3N

I

Negative polarity of low voltage differential data 3 signal

21

MIPI_3P

I

Positive polarity of low voltage differential data 3 signal

22

GND

P

 ground

23-24

NC

-

No connect

25

GND

P

 ground

26-29

NC

-

 No connection

30

GND

P

 ground

31-32

K

P

LED Cathode

33-38

NC

-

No connect

39-40

A

 P

LED Anode

I: input; O: output; P: Power or Ground(0V)

Typical Operation Condition

Item

Symbol

Values

Unit

Min.

Typ.

Max.

Power voltage

VCI

2.5

2.8

3.3

V

IOVCC

1.65

1.8

3.3

V

Input logic high voltage

V_IH

0.8 V_IOVCC

-

VIOVCC

V

Input logic low voltage

V_IL

0

0.2VIOVCC

V

Test condition: GND=0V, TA=25 ℃

Current For LED Driver

Item

Symbol

Values

Unit

Remark

Min.

Typ.

Max.

Voltage for LED Backlight

V_L

16.2

18

19.8

V

Note 1

Crrent for LED Backlight

 I_L

-

280

-

mA

LED life time

-

20,000

-

-

Hr

Note 2

Note1: VL=18V, IL=280mA (Backlight circuit: 6series connection, 7 parallel connection), the ambient temperature is 25℃.

Note 2: The “LED life time” is defined as the module brightness decrease to 50% original brightness at Ta=25℃ and 1/2 rared current . The LED lifetime could be decreased if operating IL is larger than 280 mA.

Optical Specifications

Item

Symbol

Condition

Values

Unit

Min.

Typ.

Max.

Viewing angle(CR≥ 10)

θ_L

Φ=180°(9 o’clock)

-

80

-

degree

θ_R

Φ=0°(3 o’clock)

-

80

-

θ_T

Φ=90°(12 o’clock)

-

80

-

θ_B

Φ=270°(6 o’clock)

-

80

-

Response time

T_ON

Normal(θ=Φ=0°)

-

10

15

msec

T_OFF

-

15

25

msec

Contrast ratio

CR

800

1000

-

-

Color chromaticity

W_X

0.24

0.29

0.34

-

W_Y

0.26

0.31

0.36

-

NTSC

-

50

%

Luminance

L

500

600

-

cd/m²

Luminance uniformity

Y_U

70

80

-
