USART/UART Serial Port LCD Module
10.1 Inch Industrial Linux Intelligent Display Terminal Support RS232 RS485 and RS422 Port Communication
Model Definition（Help you understand the meaning of the model coding, it is not specific to this product）
Product Parameters
| Product Specification | ||
| Hardware Performance | Module | MGC101W017XGRRADE |
| Operating System | LINUX | |
| Display Size | 10.1" TFT LCD | |
| Resolution（Px） | 1024X600 | |
| Colors | 16.77M Colors | |
| Brightness | 250 cd/㎡ | |
| Backlight | LED （Support backlight adjustment） | |
| LED Life | 20000 hours | |
| Touch Screen | 4-wire resistive touch screen（Surface hardness 4H） | |
| CPU | 64-bit ,1GHz Main frequency, with 64MB DDR memory | |
| Memory | 128Mbyte SPI Nand Flash | |
| RTC | Real-time clock built-in | |
| Buzzer | Built-in | |
| Ethernet | Supported | |
| 4G Internet Of Things | Customized, according to customer requirement | |
| Audio Playback | Customized, according to customer requirement | |
| I2C External Keyboard | Customized, according to customer requirement | |
| Save Power Failure Data | Supported | |
| USB Port 1 | USB2.0 Device port (TYPE-C USB upgrade port) | |
| USB Port 2 | USB2.0 HOST port (USB flash disk upgrade port) | |
| Program Download Method | USB,U disk, Ethernet(Only supported for Ethernet type) | |
| U Disk | Supported | |
| Communication Port | Port 1:RS232,RS485,RS422 Port 2:RS485 Port 3:RS232 （Reserve） |
|
| Electrical Specifications |
Maximum Power Consumption | 3.5W |
| Voltage Range | DC 19-30V | |
| Power Protection | Have +/-4KV lightning surge protection capability | |
| The Allowed Loss Of Power | <5ms | |
| CE&ROHS | Comply with EN61000-6-2:2005, EN61000-6-4:2007 standards;Lightning surge+/-4KV,EFT:+/-1.2KV；Electrostatic contact discharge +/-5KV；Electrostatic air discharge+/-5KV. | |
| Environmental Specifications |
Operating Temperature | -10℃~50℃ |
| Storage Temperature | -30℃~70℃ | |
| Environmental Humidity | 10~90%RH(non-condensing) | |
| Vibration | 10-25Hz (X, Y, Z direction, 2g/30 min) | |
| Cooling Way | Natural air cooling | |
| The Other Parameters |
Protection Grade | The front panel conforms to IP65 (with flat plate cabinet installation), and the rear panel conforms to IP20 |
| Software | Upper：MagicStudio | |

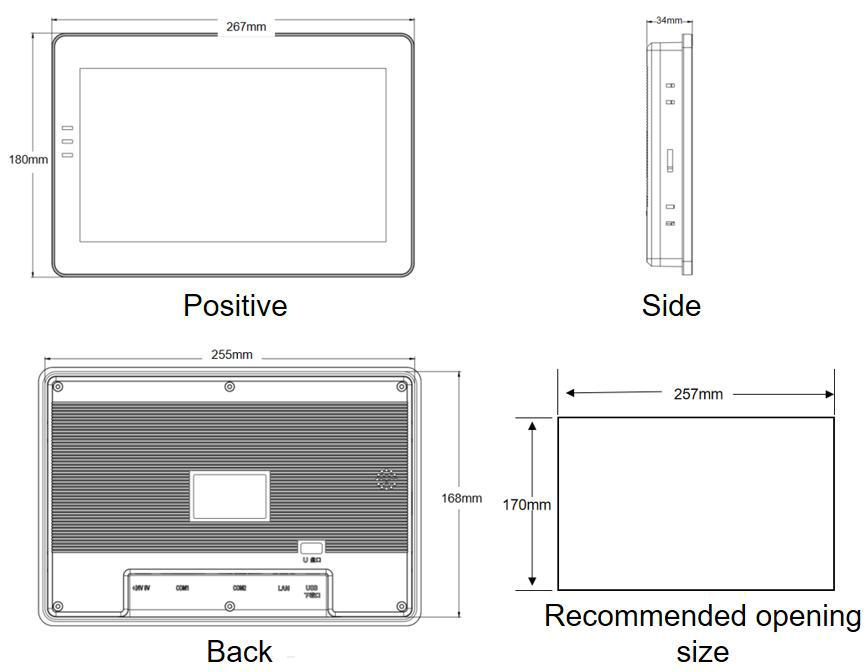

Mechanical Drawings

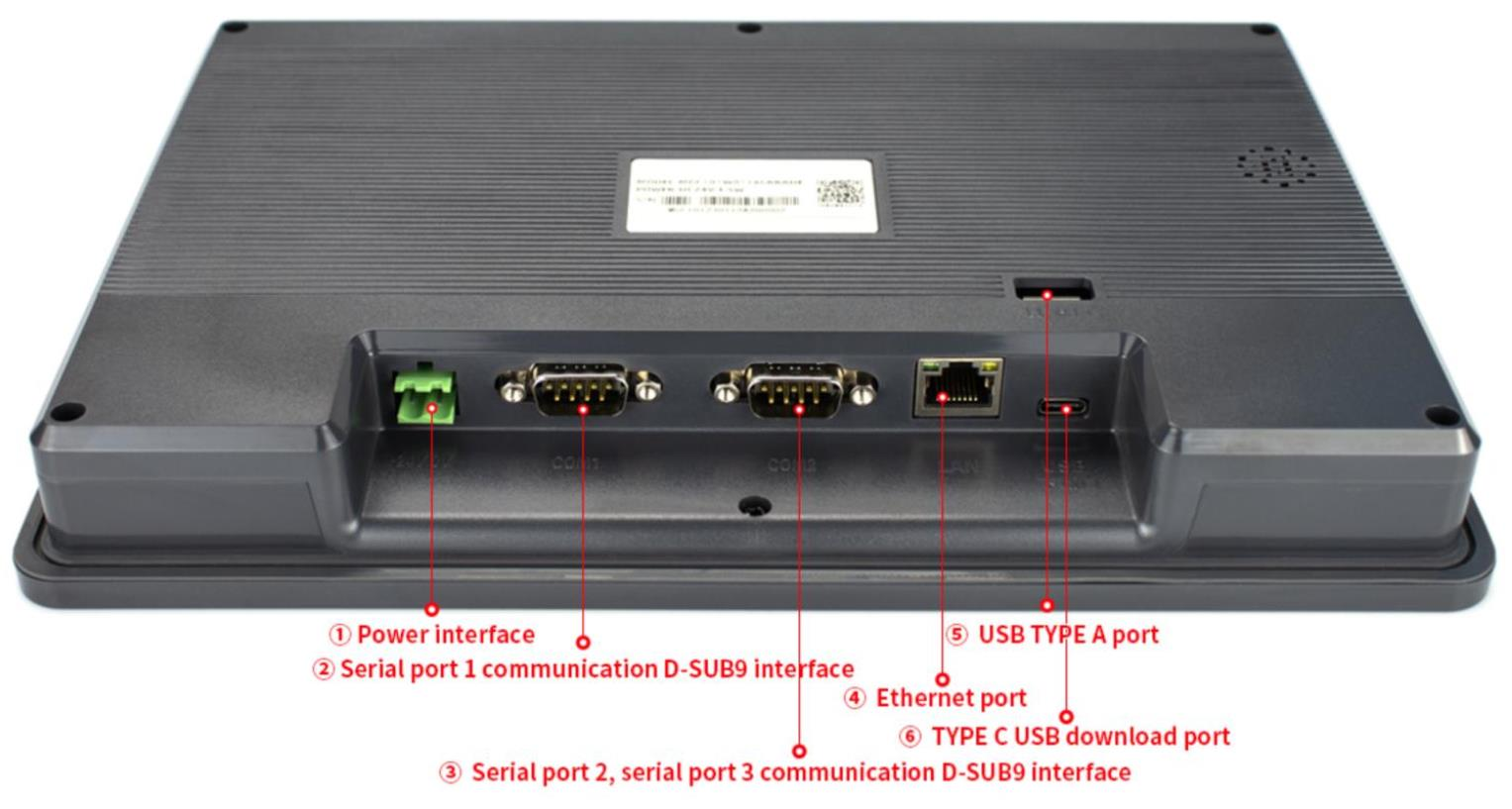

Product Details
Our Advantages
Size Variability: Available in a range of dimensions from 2.4 inches to 10.1 inches, offering adaptability to specific size requirements.
Display Resolution Options: Configurable with various screen resolutions such as 320 pixels by 240 pixels, 480 pixels by 320 pixels, 800 pixels by 480 pixels, and others, tailored to diverse visual preferences.
Adjustable Flash Memory: Offers customizable capacities for flash storage including 8 MB, 16 MB, 64 MB, and 128 MB, ensuring ample space for storing data.
Communication Interface Flexibility: Supports a variety of communication protocols like TTL, RS485, and RS232, facilitating seamless connectivity solutions.
Customizable Control System: Software and primary controller can be personalized to meet specific operational requirements effectively.
Touch Panel Versatility: Compatible with both customized resistive and capacitive touch panel configurations, providing flexibility in user interface design.
Adaptable Auxiliary Features: Allows for the adjustment of power supply voltage, configuration of external interfaces, enhancement of sensor capabilities, customization of buzzer functions, implementation of power loss protection mechanisms, management of real-time clock (RTC), and more, enhancing versatility across various applications.
Key Considerations for Choosing the Best LCD Module
Customizable Dimensions: Tailored to meet specific design and application requirements, covering both overall size and active display area considerations.
Interface Options: Available in a variety of connection formats including TTL, RS485, and RS232, selected based on device capabilities and system integration needs.
Temperature Management: Implements strategies to ensure prolonged operational reliability and consistent performance across varying temperature ranges.
Environmental Resilience: Ensures product durability in environments with typical humidity levels encountered during operational use.
Shock Resistance: Engineered to withstand severe vibrations and shaking commonly found in demanding operational environments.
