USART/UART Serial Port LCD Module
10.1 Inch Industrial UCOS Intelligent Display Terminal Support RS232 Port Communication
Model Definition（Help you understand the meaning of the model coding, it is not specific to this product）
Product Parameters
| Product Specifications | ||
| Hardware Performance | Model | AMT101W016-L1024X600C-1EE |
| Operating System | UCOS | |
| Display Screen | 10.1TFT LCD | |
| Resolution (Px) | 1024X600 | |
| Colour | 65536 | |
| Brightness | 200 cd/m2 | |
| Badly-Lit | LED (support backlight adjustment) | |
| LED Life | 20,000 hours | |
| Touch Screen | Capacitive touch screen | |
| Central Processing Unit | 600MHz ARM9 Built-in 32MB DDR2Internal storage | |
| Memory | 64Mbyte SPI NAND Flash | |
| RTC | Not supported | |
| Buzzer | Supported | |
| Power Failure Data Preservation | Supported | |
| USB Port | Not have | |
| Program Download Method | SD card | |
| Communication Port | Serial port 1:RS232,Serial port 2:RS232 | |
| Electrical Specifications | Rated Power | The biggest3.5W |
| Rated Voltage | DC 10-30V | |
| Power Protection | Equipped with +/-250V lightning surge protection ability | |
| Allow Power Loss | <5ms | |
| CE&ROHS | Complies with EN61000-6-2:2005, EN61000-6-4:2007 standard; lightning surge +/-250V, group pulse +/-2KV; electrostatic contact discharge +/-4KV; electrostatic air discharge +/-8KV. | |
| Environmental Specifications | Working Temperature | -10℃~50℃ |
| Storage Temperature | -30℃~70℃ | |
| Ambient Humidity | 10~90% RH (no condensation) | |
| Shock Resistance | 10-25Hz (X, Y, Z direction, 2g/30 minutes) | |
| Cooling Method | Natural air cooling | |
| Other Parameters | Protection Level | The front panel is compliant with IP65 (with flat enclosure installation), and the rear shell of the fuselage complies with IP20. |
| Net Weight Of The Whole Machine | 300g | |
| Corresponding Software | Upper position:HMIStudio5.0 | |
Mechanical Drawings

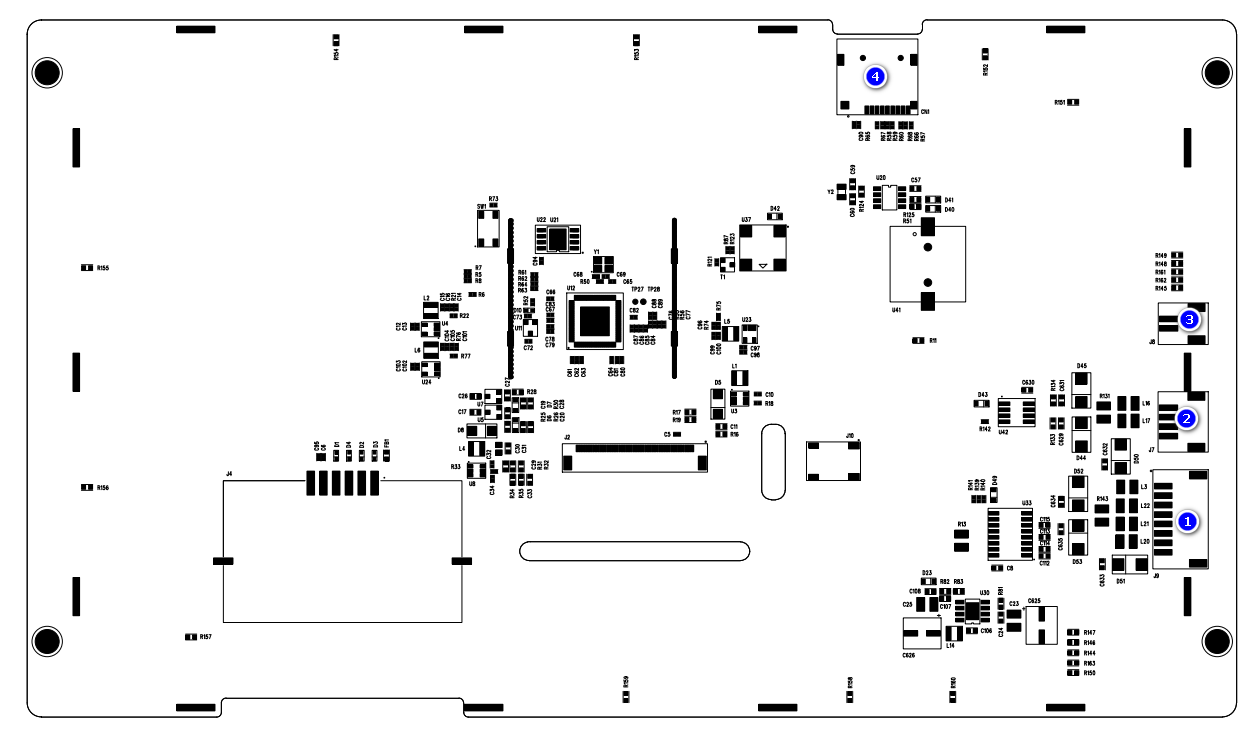

Product Details
Our Advantages
Size Flexibility: Available in dimensions ranging from 2.4 inches up to 10.1 inches, offering adaptable options to suit specific needs.
Resolution Configuration: Configurable with a variety of screen resolutions such as 320 pixels by 240 pixels, 480 pixels by 320 pixels, 800 pixels by 480 pixels, and others, tailored to diverse display requirements.
Flash Memory Options: Adjustable capacities for flash storage include 8 megabytes, 16 megabytes, 64 megabytes, and 128 megabytes, providing ample space for data storage.
Communication Interface Versatility: Supports a range of communication interfaces including TTL, RS485, and RS232, ensuring seamless connectivity choices.
Customizable Operating System: Software and primary controller can be tailored to meet specific application requirements.
Touch Panel Compatibility: Compatible with both customized resistive and capacitive touch panel configurations, offering flexibility in user interaction methods.
Auxiliary Features Customization: Allows adjustments to power supply voltage, configurations of external interfaces, sensor capabilities, buzzer functionality, power outage protection mechanisms, real-time clock (RTC), and more, enhancing adaptability across various applications.
Key Considerations for Choosing the Best LCD Module
Dimensions Customization: Tailored to meet specific design and application requirements, encompassing both overall size and active display area considerations.
Interface Versatility: Available in a variety of formats including TTL, RS485, and RS232, selected based on device capabilities and system integration needs.
Temperature Stability: Implements measures to ensure prolonged operational lifespan and consistent performance across a wide range of temperature fluctuations.
Environmental Durability: Ensures the product's protective capabilities align with the humidity levels typically encountered in its operational environment.
Vibration Resilience: Engineered to withstand severe vibrations and shaking common in challenging operational settings.
