12.3 Inch LCD module Intelligent Display Terminal Support LVDS Interface

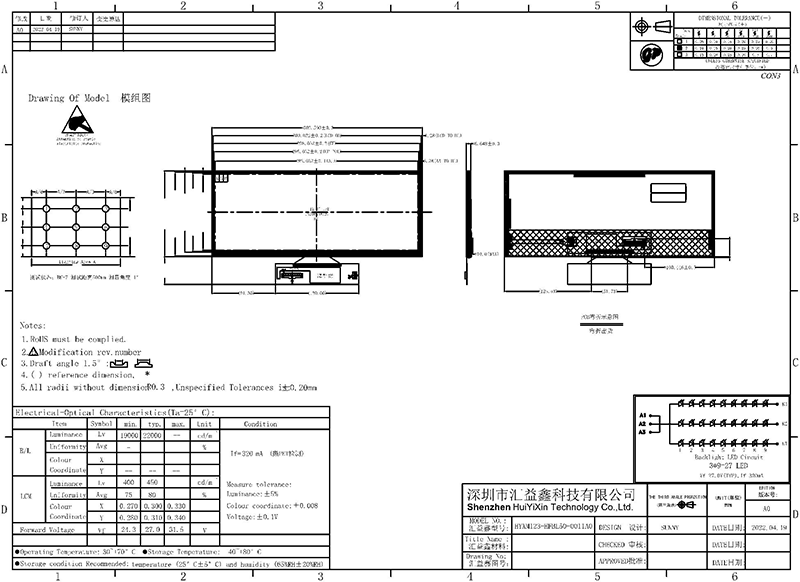

General Specifications

No.

Item

Specification

1

LCD Size

12.3 inch

2

Driver Element

a-Si TFT active matrix

3

Number of Pixels

1920RGB (W) x 720(H)

4

Display Mode

Normally Black, Transmissive

5

Pixel Pitch

0.1521 (w)x 0.1521(H)

6

LCD Type

IPS/RGB

7

Brightness

450

8

Active Area

292.032(W) x 109.512(H) mm

9

Module Size

302.59(W) ×123.59(H) ×6.648(D) mm

10

View Direction

ALL

11

Viewing angle

80/80/80/80

12

Surface Treatment

AG

13

Color Arrangement

RGB-stripe

14

Interface

LVDS

15

LCM Power Consumption

（9.3W）TYP.

16

Drive IC

TBD

Pin Assignment

Pin No

Symbol

I/O

Function

1

GND

P

Ground

2

BIST

I

LCD Panel Self Test Enable, When it is not used,connecting to GND is recommended, don't floating

3

VDD

P

Main Power Supply

4

VDD

P

Main Power Supply

5

GND

P

Ground

6

GND

P

Ground

7

OTP(NC)

---

Serial interface OTP power

8

NC

---

No connect

9

GND

P

Ground

10

ORXIN0-

I

Odd pixel negative LVDS differential data input(O0-)

11

ORXIN0+

I

Odd pixel positive LVDS differential data input(O0+)

12

ORXIN1-

I

Odd pixel negative LVDS differential data input(O1-)

13

ORXIN1+

I

Odd pixel positive LVDS differential data input(O1+)

14

ORXIN2-

I

Odd pixel negative LVDS differential data input(O2-)

15

ORXIN2+

I

Odd pixel positive LVDS differential data input(O2+)

16

ORXCLKIN-

I

Odd pixel negative LVDS differential CLK input(OCLK-)

17

ORXCLKIN+

I

Odd pixel positive LVDS differential CLK input(OCLK+)

18

ORXIN3-

I

Odd pixel negative LVDS differential data input(O3-)

19

ORXIN3+

I

Odd pixel positive LVDS differential data input(O3+)

20

ERXIN0-

I

Even pixel negative LVDS differential data input(E0-)

21

ERXIN0+

I

Even pixel positive LVDS differential data input(E0+)

22

ERXIN1-

I

Even pixel negative LVDS differential data input(E1-)

23

ERXIN1+

I

Even pixel positive LVDS differential data input(E1+)

24

ERXIN2-

I

Even pixel negative LVDS differential data input(E2-)

25

ERXIN2+

I

Even pixel positive LVDS differential data input(E2+)

26

ERXCLKIN-

I

Even pixel negative LVDS differential CLK input(ECLK-)

27

ERXCLKIN+

I

Even pixel positive LVDS differential CLK input(ECLK+)

28

ERXIN3-

I

Even pixel negative LVDS differential data input(E3-)

29

ERXIN3+

I

Even pixel positive LVDS differential data input(E3+)

30

GND

P

Ground

31

FAULT

---

FAULT signal output(normal=H,abnormal=L)

32

RESETB

I

Global reset pin, active low.

33

STBYB

I

Standby mode setting pin, active low.

34

CSB(NC)

-

Keep this pin floating when not programming OTP

35

SCL(NC)

-

Keep this pin floating when not programming OTP

36

SDA(NC)

-

Keep this pin floating when not programming OTP

37

SDO(NC)

-

Keep this pin floating when not programming OTP

38

GND

P

Ground

39

GND

P

Ground

40

NC

---

No connect

41

LEDA

P

LED power(Anode)

42

LEDA

P

LED power(Anode)

43

LEDA

P

LED power(Anode)

44

NC

---

No connect

45

LEDK

P

Cathode1

46

LEDK

P

Cathode2

47

LEDK

P

Cathode3

48

LEDK

P

Cathode4

49

NTC_A

I

NTC_Anode

50

NTC_K

I

NTC_Cathode

I: input; O: output; P: Power or Ground(0V)

Absolute Maximum Ratings

Item

Symbol

Values

Unit

Remark

Min.

Max.

Power voltage

VDD

-0.3

4

V

TA=25℃

Operation Temperature

T_OP

-30

70

℃

Storage Temperature

T_ST

-40

80

℃

Note1 : The absolute maximum rating values of this product are not allowed to be exceeded at any times. Should a module be used with any of the absolute maximum ratings exceeded, the characteristics of the module may not be recovered, or in an extreme  case, the module may be permanently destroyed

Typical Operation Condition

Item

Symbol

Values

Unit

Min.

Typ.

Max.

Digital Operating voltage

VDD

3

3.3

3.6

V

High Level Input Voltage

V_IH

0.8 V_DD

-

V_DD

V

Low Level Input Voltage

V_IL

0

0.2 V_DD

V

Test condition: GND=0V, TA=25 ^oC

Current For LED Driver

Item

Symbol

Values

Unit

Remark

Min.

Typ.

Max.

Voltage for LED Backlight

V_L

24.3

27

31.5

V

Note 1

Crrent for LED Backlight

 I_L

-

320

-

mA

BL Power Consumption

BL

-

8.64

-

W

LED life time

-

20,000

-

-

Hr

Note 2

Note1: VL=27V, IL=320mA (Backlight circuit:9series connection, 3 parallel connection), the ambient temperature is 25℃

Note 2: The “LED life time” is defined as the module brightness decrease to 50% original brightness at Ta=25℃ and 1/2 rated current. The LED lifetime could be decreased if operating IL is larger than 320 mA.

Optical Specifications

Item

Symbol

Condition

Values

Unit

Min.

Typ.

Max.

Viewing angle(CR≥ 10)

θ_L

Φ=180°(9 o’clock)

80

85

-

degree

θ_R

Φ=0°(3 o’clock)

80

85

-

θ_T

Φ=90°(12 o’clock)

80

85

-

θ_B

Φ=270°(6 o’clock)

80

85

-

Response time

T_ON+OFF

Normal(θ=Φ=0°)

-

30

msec

Contrast ratio

CR

1200

1500

-

-

Color chromaticity

W_X

0.27

0.3

0.33

-

W_Y

0.28

0.31

0.34

-

Luminance

L

400

450

-

cd/m²

Luminance uniformity

Y_U

70

80

-

%
