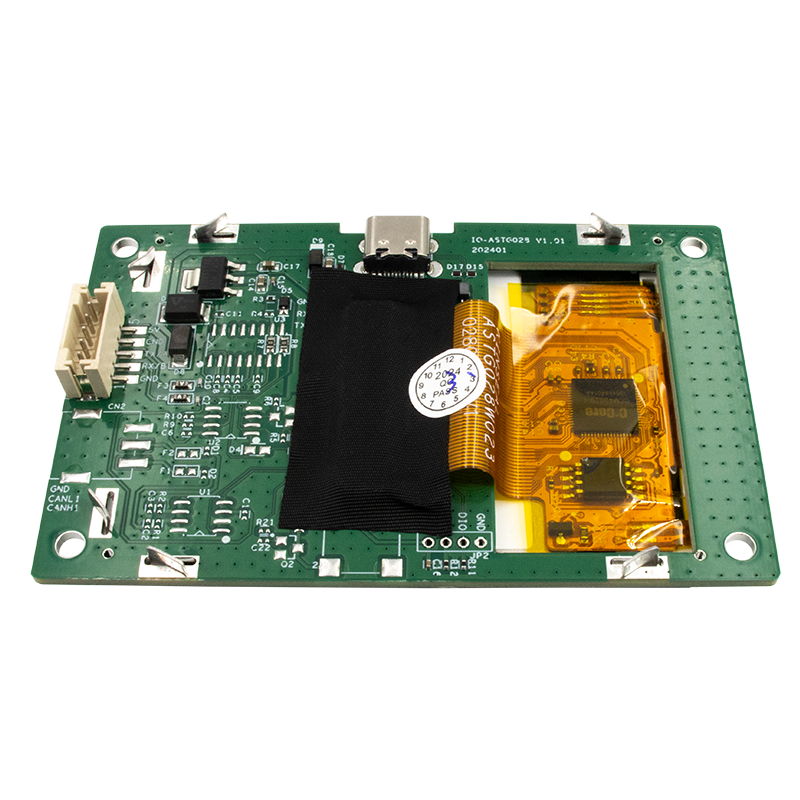

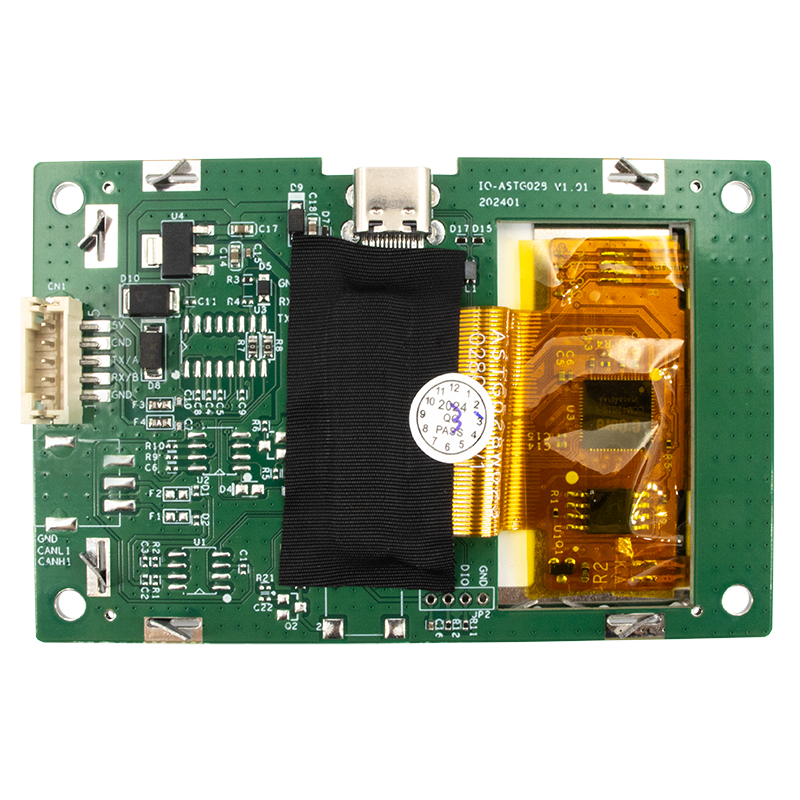

USART/UART Serial Port LCD Module
2.8 Inch Industrial Intelligent Display Terminal Support TTL and CAN Port Communication
Model Definition（Help you understand the meaning of the model coding, it is not specific to this product）
Product Parameters
| Product Specifications | ||
| Hardware Performance | Model | ASTG028W023-L240X320R-0T， ASTG028W023-L240X320N-0T，ASTG028W023-L240X320R-COF， ASTG028W023-L240X320N-COF |
| Display Screen | 2.8" TFT LCD | |
| Resolution (Px) | 240X320 | |
| Colour | 65536Color | |
| Brightness | 250 cd/m2 | |
| Badly-Lit | Large electronic display (Support backlight adjustment) | |
| Large Electronic Display Lifespan | 20,000 hours | |
| Touch Screen | L240X320R: Resistive touch screen L240X320N: No touch |
|
| Central Processing Unit | 200MHz ARM Cortex-M4F Built-in2MB PSRAMInternal storage | |
| Memory | Inside the film2Mbyte SPI NOR Flash; Outside the film8Mbyte SPI NOR Flash; | |
| RTC | ASTG028W023-L240X320R-0T， ASTG028W023-L240X320N-0T:Not supported；ASTG028W023-L240X320R-COF， ASTG028W023-L240X320N-COF:Supported, add external circuits |
|
| Buzzer | ASTG028W023-L240X320R-0T， ASTG028W023-L240X320N-0T:Not supported；ASTG028W023-L240X320R-COF， ASTG028W023-L240X320N-COF:Supported, add external circuits |
|
| Power Failure Data Preservation | 3SAuto-save | |
| Universal Serial BusPort | USB Device | |
| Program Download Method | ASTG028W023-L240X320R-0T， ASTG028W023-L240X320N-0T:TYPE-C USBDownload; ASTG028W023-L240X320R-COF， ASTG028W023-L240X320N-COF:Universal serial busDownload |
|
| Communication Port | ASTG028W023-L240X320R-0T， ASTG028W023-L240X320N-0T:1Road TTL Level serial port; ASTG028W023-L240X320R-COF， ASTG028W023-L240X320N-COF:1Road TTL Level serial port; 1Road CAN Communication interface; |
|
| Plug-in Specifications | ASTG028W023-L240X320R-0T， ASTG028W023-L240X320N-0T:5Pin PH2.0mmTerminals;ASTG028W023-L240X320R-COF， ASTG028W023-L240X320N-COF:FPC0.5mm-50P |
|
| Electrical Specifications |
Rated Power | ASTG028W023-L240X320R-0T， ASTG028W023-L240X320N-0T:The biggest 0.8W;ASTG028W023-L240X320R-COF， ASTG028W023-L240X320N-COF:The biggest 1W |
| Rated Voltage | ASTG028W023-L240X320R-0T， ASTG028W023-L240X320N-0T:5V;ASTG028W023-L240X320R-COF， ASTG028W023-L240X320N-COF:3.3V |
|
| Allow Power Loss | <5ms | |
| ESDTest | Contact discharge:+/-2KV; Air discharge: +/-4KV | |
| EFTTest | IEC 61000-4-4 National standard 4( Voltage:±4KV; Frequency:5KHZ; Time:120S), no restart, no display anomalies, no touch abnormalities, etc., and the test function is normal. |
|
| Environmental Specifications | Working Temperature | ASTG028W023-L240X320R-0T， ASTG028W023-L240X320N-0T:'-20℃-60℃;ASTG028W023-L240X320R-COF， ASTG028W023-L240X320N-COF:-20℃~70℃ |
| Storage Temperature | ASTG028W023-L240X320R-0T， ASTG028W023-L240X320N-0T:’-30℃~70℃;ASTG028W023-L240X320R-COF， ASTG028W023-L240X320N-COF:- 30℃~80℃ |
|
| Ambient Humidity | 10~90%RH(No condensation ) | |
| Shock Resistance | 10-25Hz(Unknown,Y,ZDirection,2g/30Minutes) | |
| Cooling Method | Natural air cooling | |

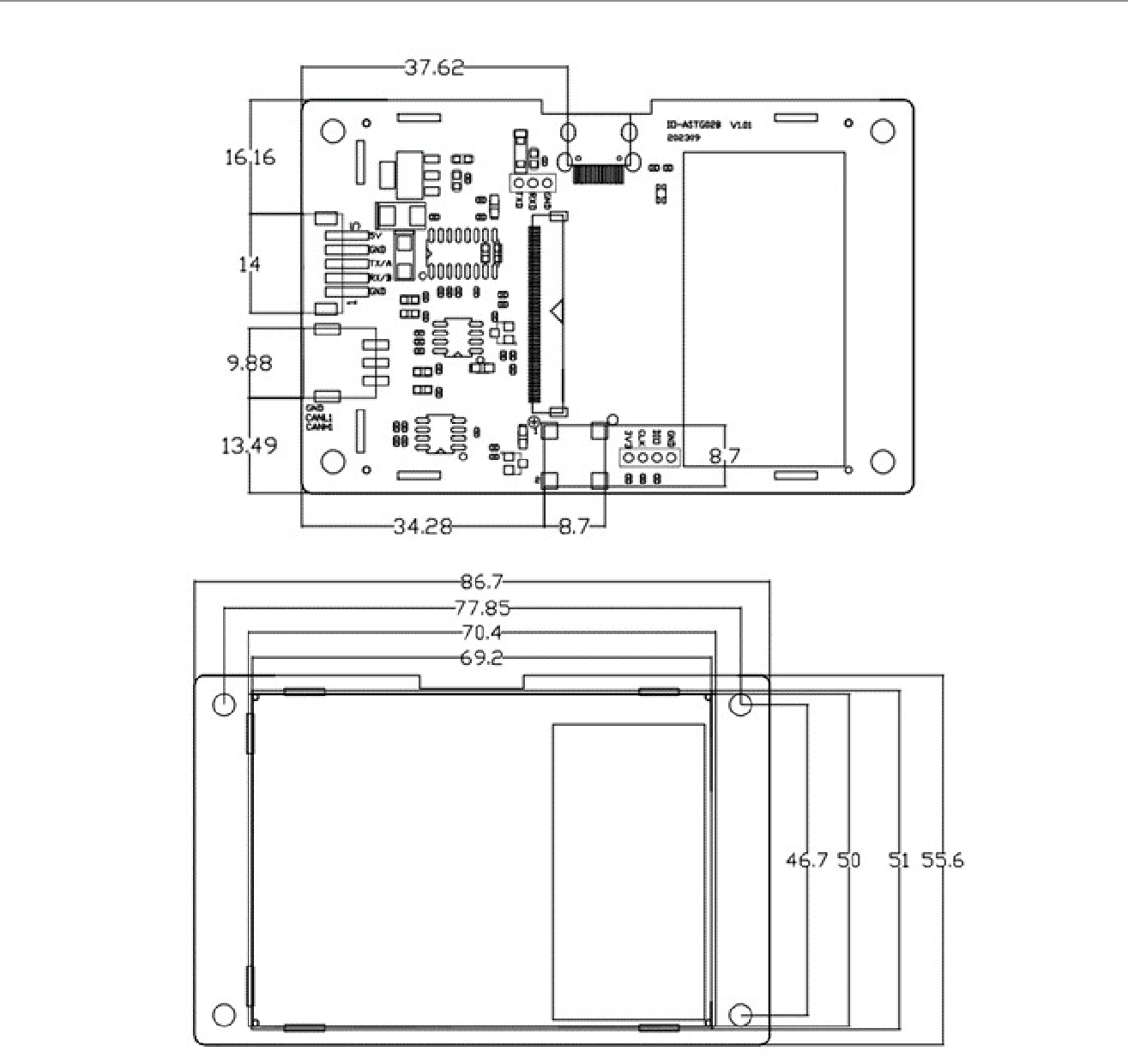

Mechanical Drawings
