USART/UART Serial Port LCD Module
4.3 Inch Industrial Intelligent Display Terminal Core Board Drive Board Support TTL USB Port Communication
Model Definition（Help you understand the meaning of the model coding, it is not specific to this product）
Product Parameters
| Product specifications | ||
| Hardware performance | Model | AMTC043W016-L480X272R/AMTC043W016-L800X480R(Core Board) |
| Display Screen | 4.3" TFT LCD | |
| Support Resolution(Px) | 480X272/800Unknown480 | |
| Touch Screen | 4-wire industrial resistance touch screen,Support capacitive touch screen (customized) | |
| Display Interface | 40Pin 0.5mm upper connection, front plug and rear lock type | |
| Connection Method | 1*4 0pin 0.5Mm spacing FPC wiring | |
| Central Processing Unit | 32-bit 600MHz main frequency ARM9 built-in 32MB DDR memory | |
| Memory | 64Mbyte SPI NAND Flash | |
| RTC | Supported (add external RTC circuits) | |
| Power Failure Data Preservation | Supported (The power-off storage circuit needs to be added.) | |
| Historical Data Power Failure Preservation | Supported (add power-off save circuit or select FRAM version) | |
| Historical Alarm, Power Failure And Preservation | Supported (add power-off save circuit or select FRAM version) | |
| Backlight Adjustment | Supported | |
| Buzzer | Supported | |
| USB Port | Supported, add USB-related circuits | |
| Program Download Method | SD card download (default)It can support USB and USB flash drives (add related circuits) | |
| USB Memory Stick | Can support (add U disk upgrade related circuits) | |
| Communication Port | COM1:TTL | |
| COM2:TTL | ||
| Electrical specifications | Maximum Rated Power | 2W |
| Rated Voltage | DC 5 V | |
| Power Protection | With +/-500V lightning surge protection capability(Bottom plate plus protective devices) | |
| Allow Power Loss | <5ms | |
| Environmental specifications | Working Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ | |
| Ambient Humidity | 10~90% RH (no condensation) | |
| Shock Resistance | 10-25Hz (X, Y, Z direction, 2g/30 minutes) | |
| Cooling Method | Natural air cooling | |
| Size Of The Whole Machine | 62.8*40*5mm | |
| Net Weight Of The Whole Machine | 20g | |
| Software | The Underlying Software Model | AMT043W016-L480X272R.bin/AMT043W016-L800X480R.bin |
| Upper Software Version | HMIStudio5.0 | |

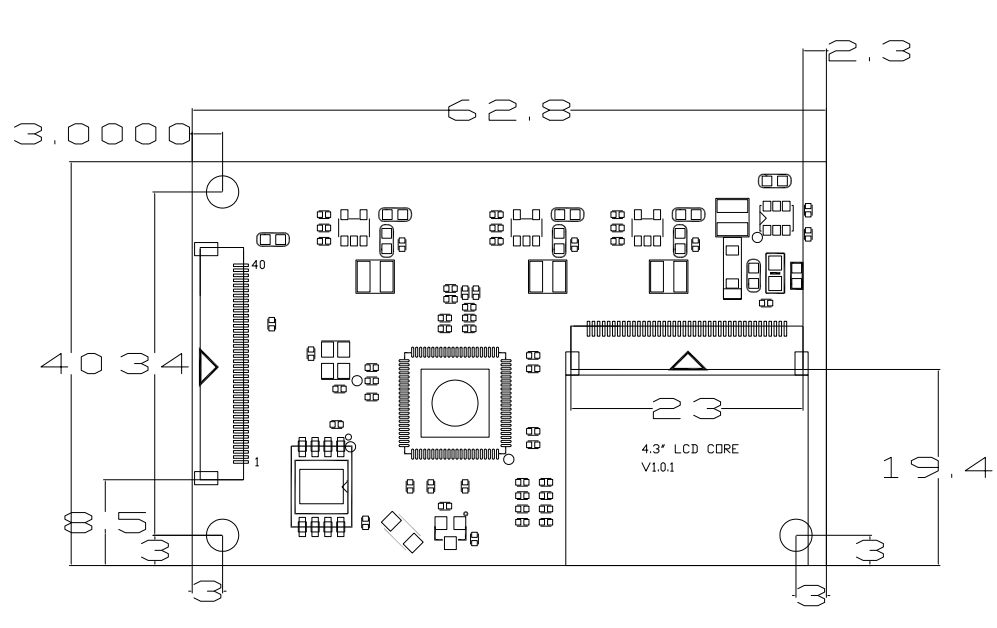

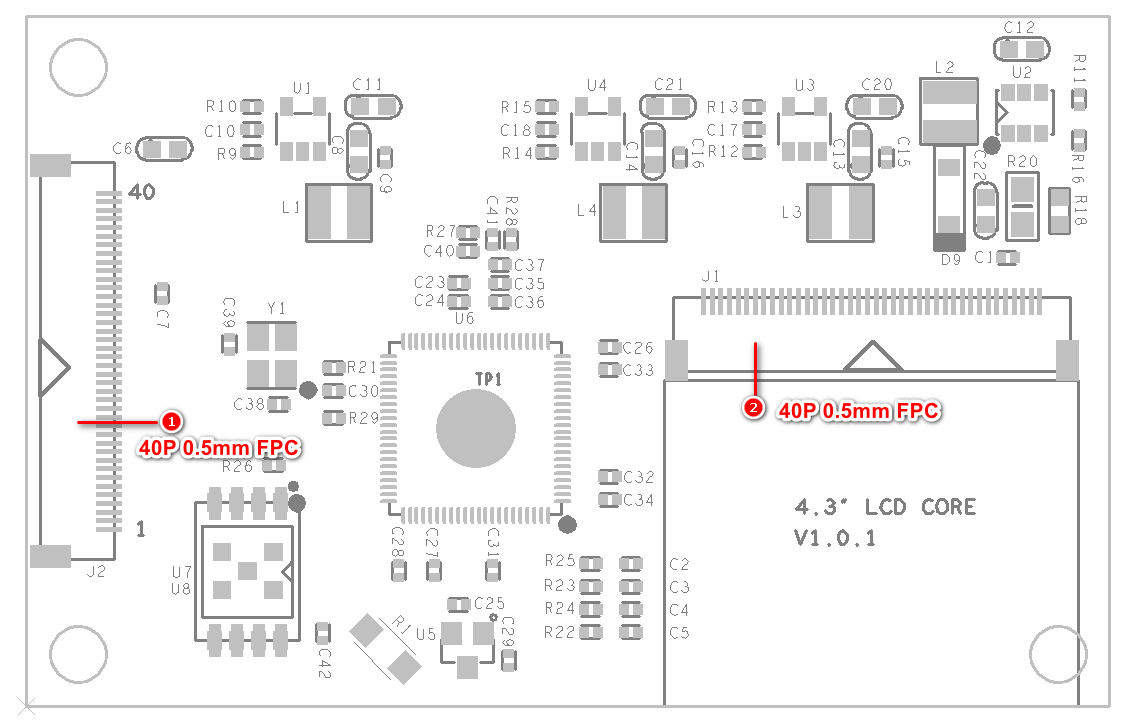

Mechanical Drawings

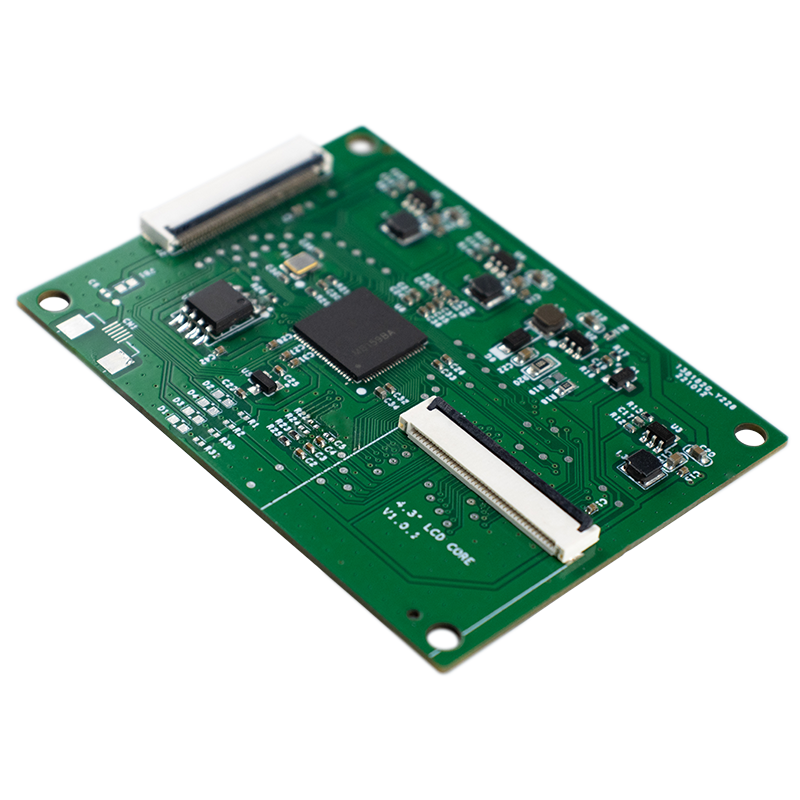

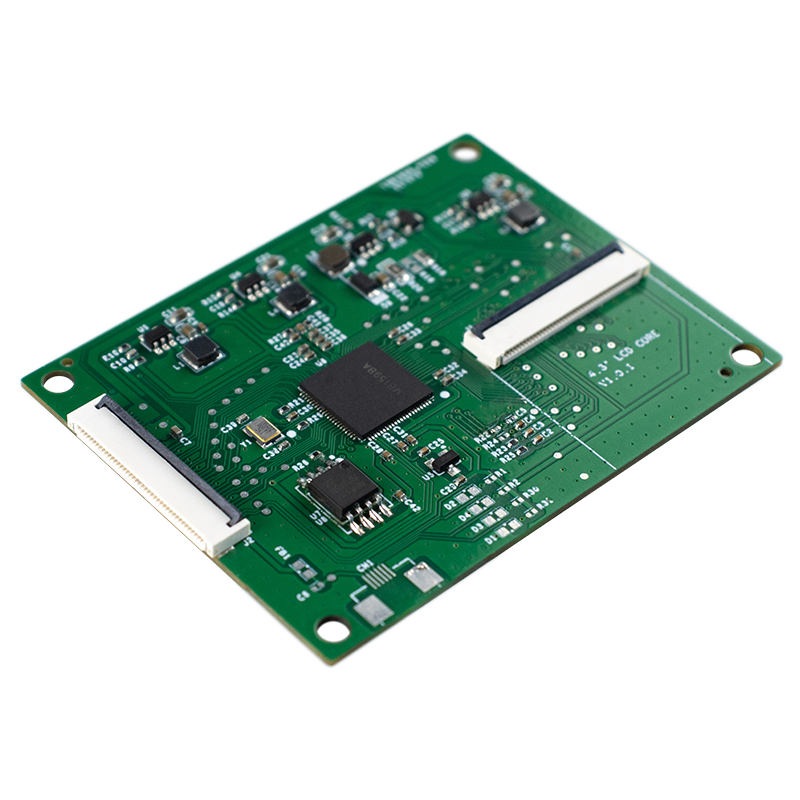

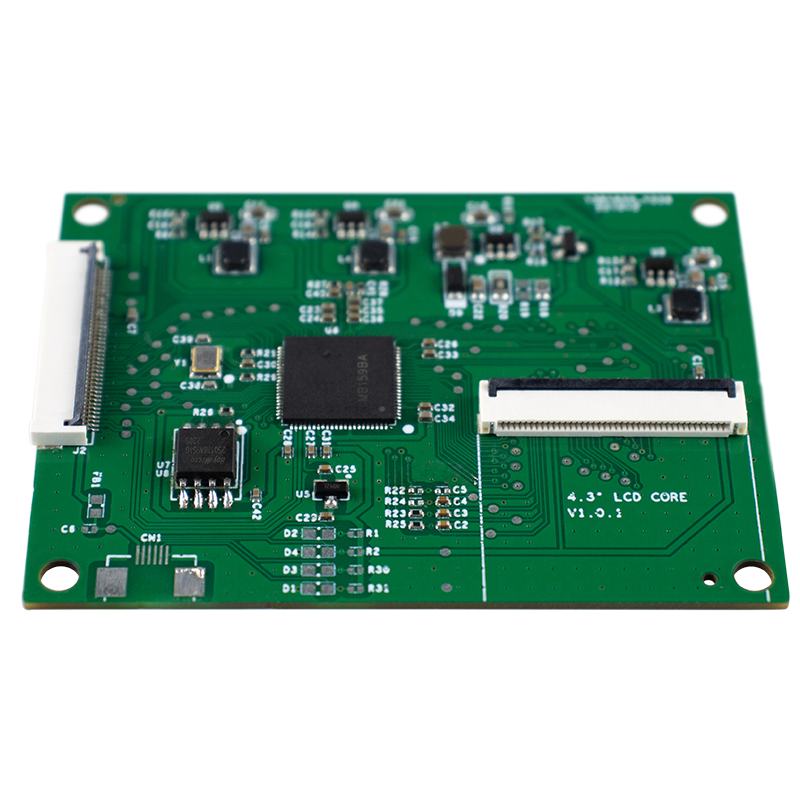

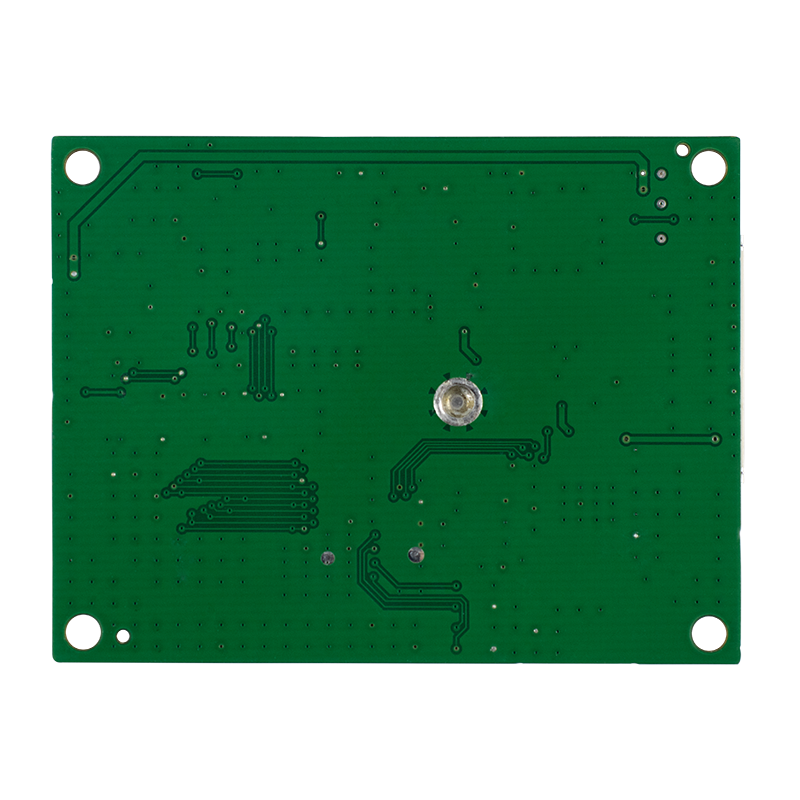

Product Details
Our Advantages
Customizable Size Range: Offers dimensions from 2.4 inches up to 10.1 inches, providing flexibility to meet specific size requirements.
Resolution Options: Configurable with various screen resolutions such as 320 by 240 pixels, 480 by 320 pixels, 800 by 480 pixels, and others, tailored to diverse display demands.
Adjustable Flash Memory: Provides options for flash storage capacities including 8 megabytes, 16 megabytes, 64 megabytes, and 128 megabytes, ensuring sufficient space for data storage.
Versatile Communication Interfaces: Supports diverse communication protocols like TTL, RS485, and RS232, enabling seamless connectivity solutions.
Tailored Control System: Software and primary controller can be customized to precise application specifications.
Touch Panel Compatibility: Compatible with both bespoke resistive and capacitive touch panel setups, offering flexibility in user interface designs.
Customizable Auxiliary Functions: Allows for customization of power supply voltage, external interface configurations, sensor capabilities, buzzer operations, power outage safeguards, real-time clock (RTC), and more, enhancing adaptability across a variety of applications.
