USART/UART Serial Port LCD Module

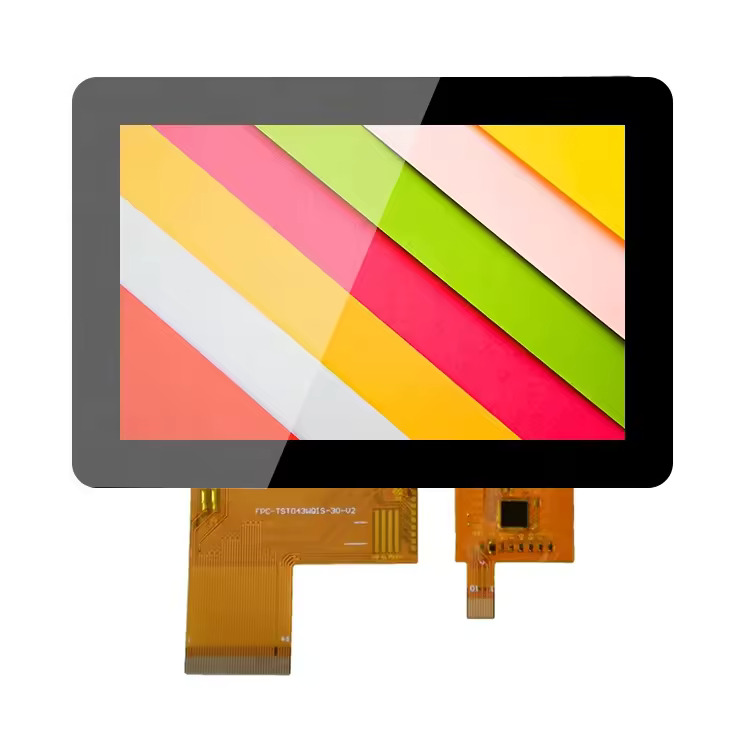

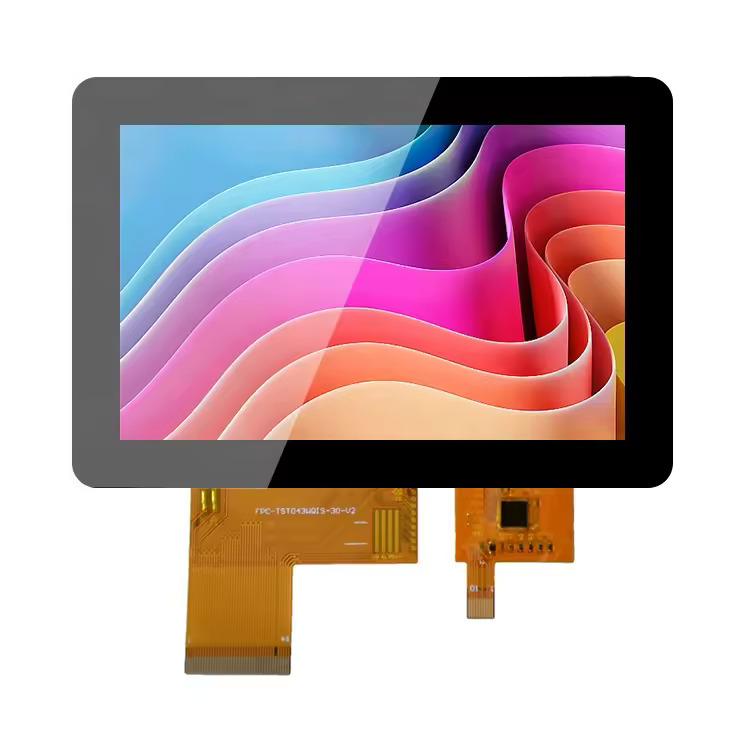

4.3 Inch Industrial Linux Intelligent Display Terminal Support RS232 RS485 and RS422 Port Communication

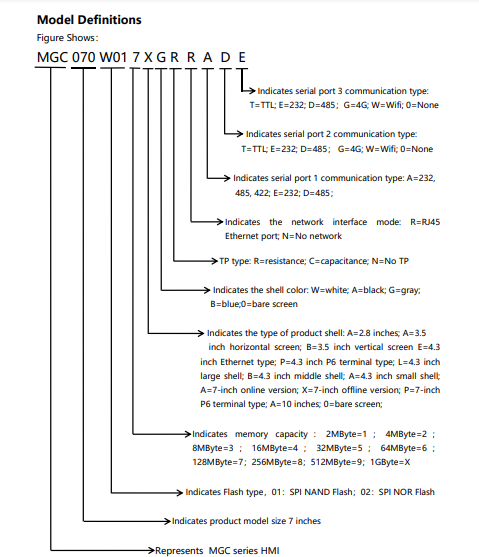

Model Definition（Help you understand the meaning of the model coding, it is not specific to this product）
Product Parameters
| Product Specification | ||
| Hardware Performance | Module | MGC043W017EGR |
| Operating System | LINUX | |
| Display Size | 4.3" TFT LCD | |
| Resolution（Px） | 480X272; | |
| Colors | 16.77M Colors | |
| Brightness | 300 cd/㎡ | |
| Backlight | LED （Support backlight adjustment） | |
| LED Life | 20000 hours | |
| Touch Screen | 4-wire resistive touch screen（Surface hardness 4H） | |
| CPU | 64-bit ,1GHz Main frequency, with 64MB DDR memory | |
| Memory | 128Mbyte SPI Nand Flash | |
| RTC | Real-time clock built-in | |
| Buzzer | Built-in | |
| Ethernet | Supported | |
| 4G Internet Of Things | Customized, according to customer requirement | |
| Audio Playback | Customized, according to customer requirement | |
| I2C External Keyboard | Customized, according to customer requirement | |
| Save Power Failure Data | Support | |
| USB Port 1 | USB2.0 Device port (TYPE-C USB upgrade port) | |
| USB Port 2 | USB2.0 HOST port (USB flash disk upgrade port) | |
| Program Download Method | USB,U disk, Ethernet(Only supported for Ethernet type) | |
| U Disk | Support | |
| Communication Port | port 1: RS232, RS485, RS422；port 2: RS485； | |
| Electrical Specifications |
Maximum Power Consumption | 2W； |
| Voltage Range | DC 19-30V | |
| Power Protection | Have +/-4KV lightning surge protection capability | |
| The Allowed Loss Of Power | <5ms | |
| CE&ROHS | Comply with EN61000-6-2:2005, EN61000-6-4:2007 standards;Lightning surge+/-4KV,EFT:+/-4KV；Electrostatic contact discharge +/-5KV；Electrostatic air discharge+/-5KV. | |
| Environmental Specifications |
Operating Temperature | -10℃~50℃ |
| Storage Temperature | -30℃~70℃ | |
| Environmental Humidity | 10~90%RH(non-condensing) | |
| Vibration | 10-25Hz (X, Y, Z direction, 2g/30 min) | |
| Cooling Way | Natural air cooling | |
| The Other Parameters |
Protection Grade | The front panel conforms to IP65 (with flat plate cabinet installation), and the rear panel conforms to IP20 |
| Software | Upper：MagicStudio | |

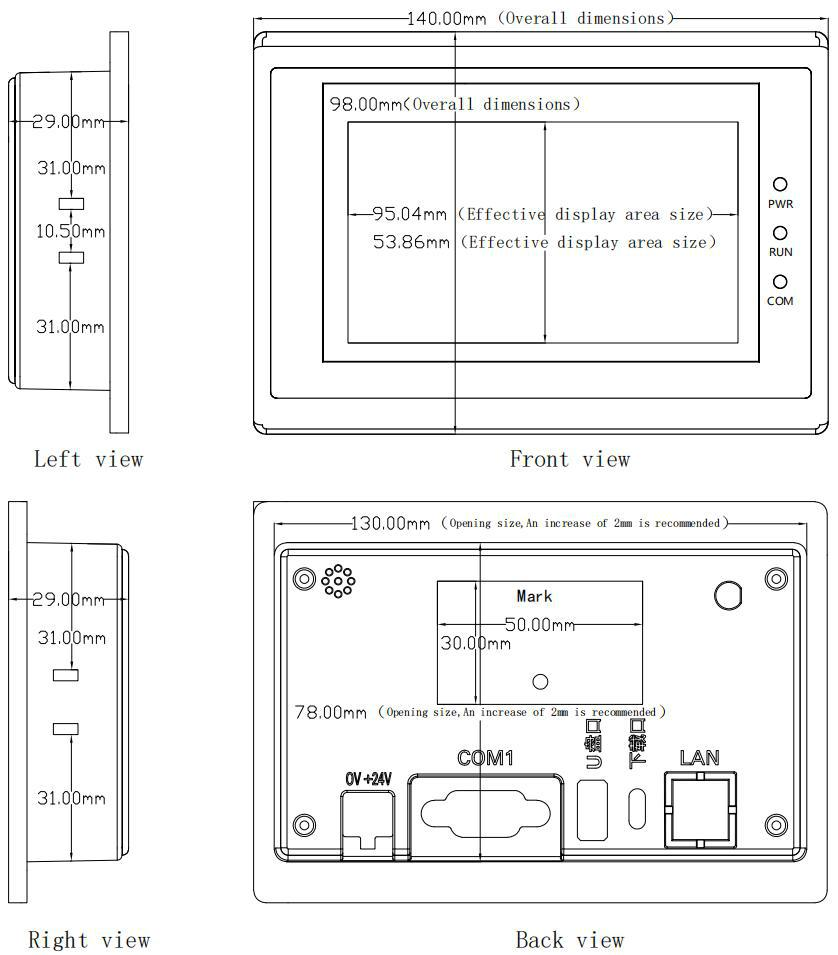

Mechanical Drawings
Product Details
Our Advantages
Size Customization: Available in a range of dimensions from 2.4 inches up to 10.1 inches, offering adaptability to specific size preferences.
Display Resolution Options: Configurable with various screen display resolutions such as 320 by 240 pixels, 480 by 320 pixels, 800 by 480 pixels, and others, tailored to diverse visual requirements.
Variable Flash Memory: Provides customizable capacities for flash storage including 8 megabytes, 16 megabytes, 64 megabytes, and 128 megabytes, ensuring ample space for data storage needs.
Communication Interface Choices: Supports multiple communication protocols like TTL, RS485, and RS232, enabling seamless connectivity solutions.
Tailored Control System: Software and primary controller can be personalized to meet specific operational demands effectively.
Touch Panel Compatibility: Compatible with both customized resistive and capacitive touch panel configurations, providing flexibility in user interface design.
Customizable Additional Functions: Allows for the adjustment of power supply voltage, configurations of external interfaces, enhancements of sensor capabilities, customization of buzzer functionalities, implementation of power loss protection mechanisms, management of real-time clock (RTC), and more, enhancing versatility across various applications.
