USART/UART Serial Port LCD Module
7 Inch Industrial Intelligent Display Terminal Core Board Drive Board Support TTL USB Port Communication
Model Definition（Help you understand the meaning of the model coding, it is not specific to this product）
Product Parameters
| Product specifications | ||
| Hardware performance | Model | AMTC070W016-L800X480R/AMTC070W016-L1024X600R(Core Board) |
| Display Screen | 7" TFT LCD | |
| Support Resolution(Px) | 800Unknown480/1024X600 | |
| Touch Screen | 4-wire industrial resistance touch screen,Support capacitive touch screen (customized) | |
| Display Interface | 50Pin 0.5mm upper connection, front plug and rear lock | |
| Connection Method | 1*4 0pin 0.5Mm spacing FPC wiring | |
| Central Processing Unit | 32-bit 600MHz main frequency ARM9 built-in 32MB DDR memory | |
| Memory | 64Mbyte SPI NAND Flash | |
| RTC | Supported (add external RTC circuits) | |
| Power Failure Data Preservation | Supported (The power-off storage circuit needs to be added.) | |
| Historical Data Power Failure Preservation | Supported (add power-off save circuit or select FRAM version) | |
| Historical Alarm, Power Failure And Preservation | Supported (add power-off save circuit or select FRAM version) | |
| Backlight Adjustment | Supported | |
| Buzzer | Supported | |
| USB Port | Supported, add USB-related circuits | |
| Program Download Method | SD card download (default)It can support USB and USB flash drives (add related circuits) | |
| USB Memory Stick | Can support (add U disk upgrade related circuits) | |
| Communication Port | COM1:TTL | |
| COM2:TTL | ||
| Electrical specifications | Maximum Rated Power | 3.5W |
| Rated Voltage | DC 5 V | |
| Power Protection | With +/-500V lightning surge protection capability(Add protection circuit at the bottom) | |
| Allow Power Loss | <5ms | |
| Environmental specifications | Working Temperature | -10℃~50℃ |
| Storage Temperature | -30℃~70℃ | |
| Ambient Humidity | 10~90% RH (no condensation) | |
| Shock Resistance | 10-25Hz (X, Y, Z direction, 2g/30 minutes) | |
| Cooling Method | Natural air cooling | |
| Size Of The Whole Machine | 65*50*5mm | |
| Net Weight Of The Whole Machine | 20g | |
| Software | The Underlying Software Model | AMT070W016-L800X480R.bin/AMT070W016-L1024X600R.bin |
| Upper Software Version | HMIStudio5.0 | |

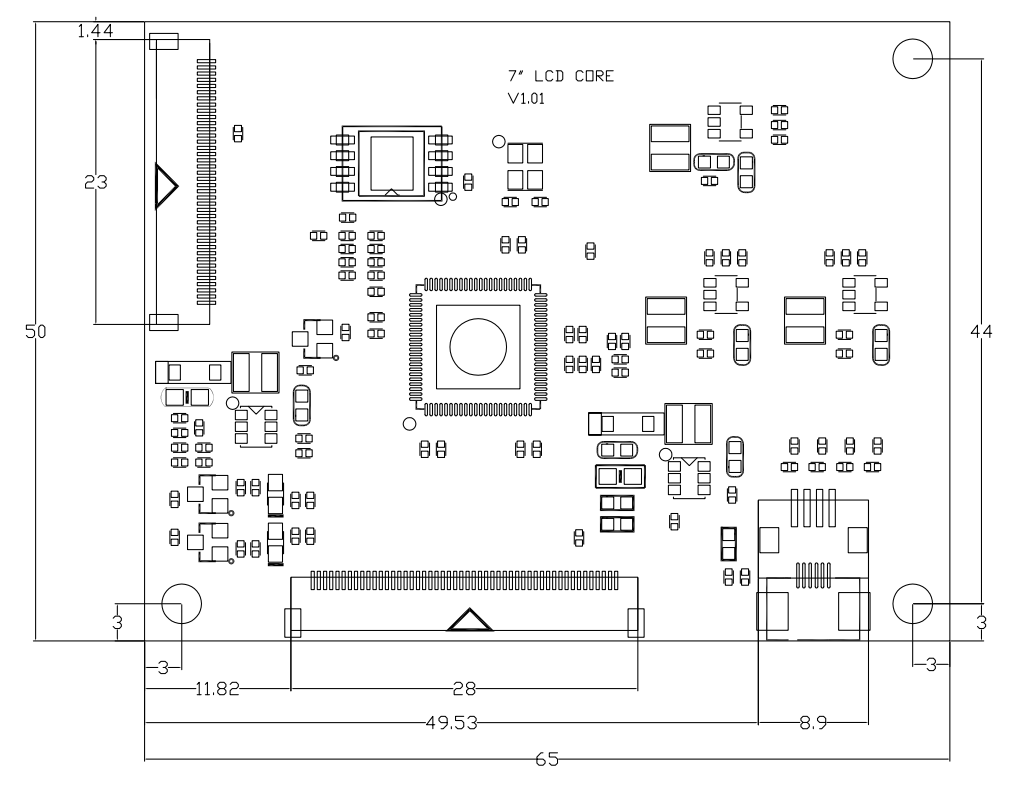

Mechanical Drawings

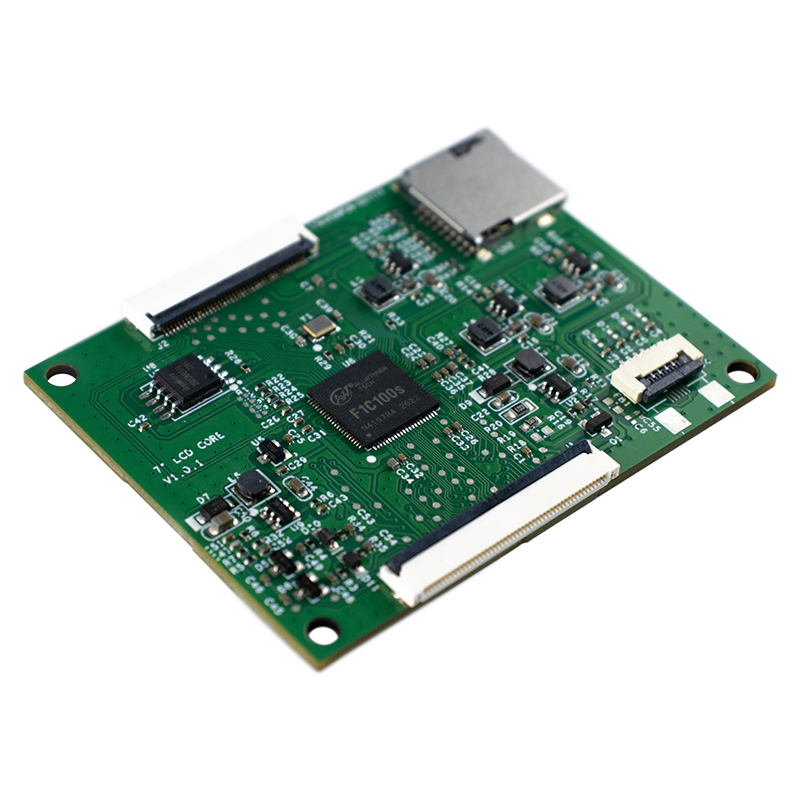

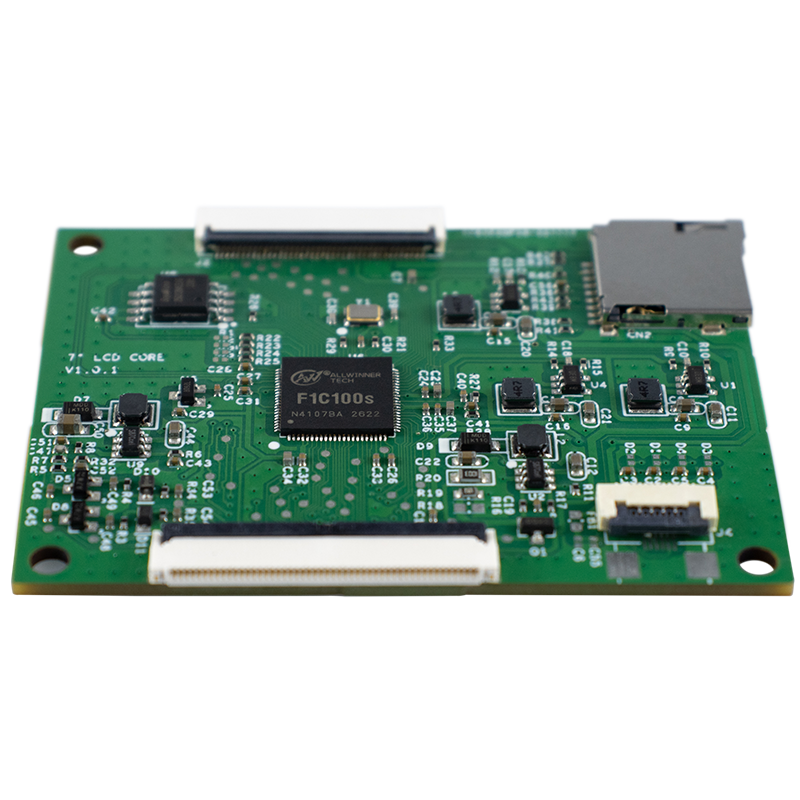

Product Details
Our Advantages
Dimension Customization: Available in sizes ranging from 2.4 inches to 10.1 inches, offering versatility to meet specific size requirements.
Display Resolution Options: Configurable with various screen resolutions such as 320 by 240 pixels, 480 by 320 pixels, 800 by 480 pixels, and others, tailored to diverse visual needs.
Flexible Flash Memory: Offers adjustable capacities for flash storage including 8 MB, 16 MB, 64 MB, and 128 MB, ensuring ample space for data storage.
Diverse Communication Interfaces: Supports a variety of communication protocols such as TTL, RS485, and RS232, facilitating seamless connectivity solutions.
Customizable Operating System: Software and primary controller can be tailored to exacting application specifications.
Touch Panel Adaptability: Compatible with both customized resistive and capacitive touch panel configurations, providing flexibility in user interface designs.
Adjustable Auxiliary Functions: Allows customization of power supply voltage, external interface configurations, sensor functionalities, buzzer operations, power loss protections, real-time clock (RTC), and more, enhancing adaptability across various applications.
Key Considerations for Choosing the Best LCD Module
Dimension Specification: Tailored to meet specific design and application requirements, considering both overall size and active display area.
Interface Variability: Available in a variety of connection formats such as TTL, RS485, and RS232, chosen based on device capabilities and system integration needs.
Temperature Management: Implements measures to ensure prolonged operational lifespan and consistent performance across diverse temperature ranges.
Environmental Adaptability: Ensures product durability in environments with typical humidity levels for its operational use.
Shock Resilience: Engineered to withstand severe vibrations and shaking encountered in demanding operational environments.
