USART/UART Serial Port LCD Module
7 Inch Industrial Linux Intelligent Display Terminal Support RS232 RS485 and RS422 Port Communication
Model Definition（Help you understand the meaning of the model coding, it is not specific to this product）
Product Parameters

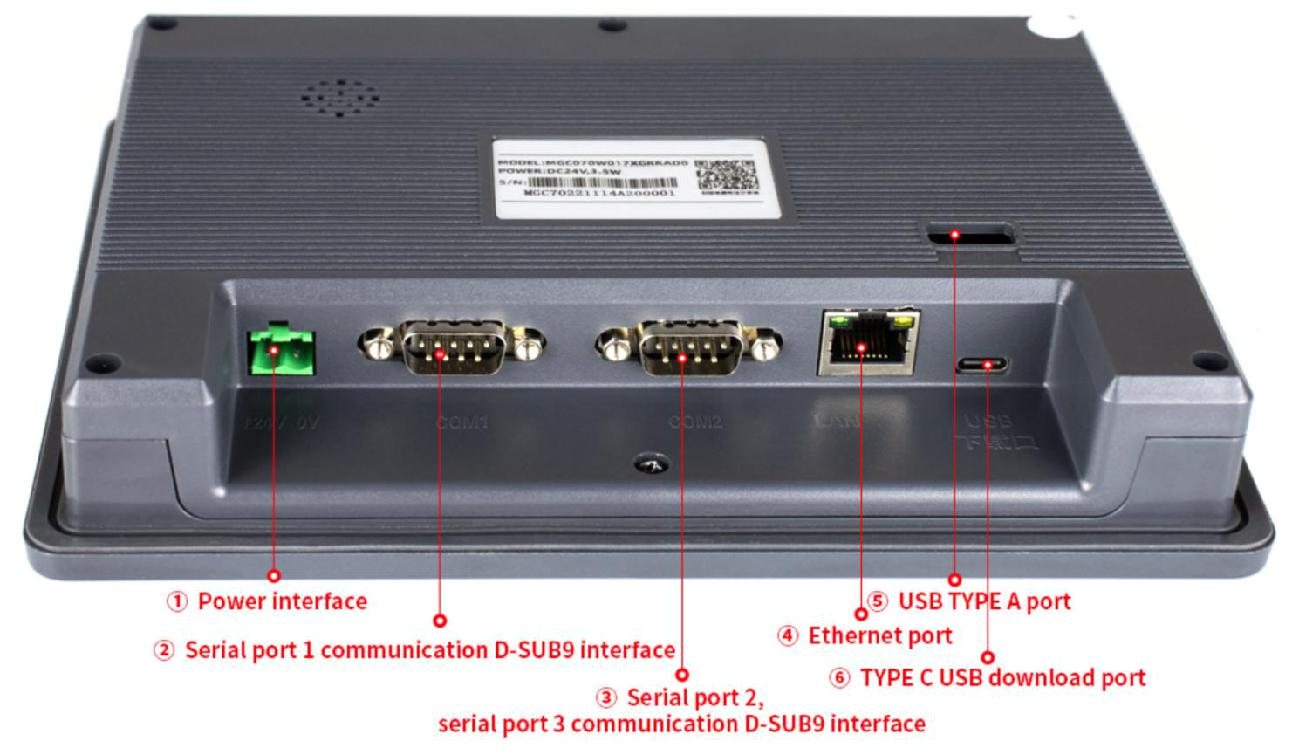

| Product Specification | ||
| Hardware Performance | Module | MGC070W017XGRRADE |
| Operating System | LINUX | |
| Display Size | 7" TFT LCD; | |
| Resolution（Px） | 800X480 | |
| Colors | 16.77M Colors | |
| Brightness | 400 cd/㎡ | |
| Backlight | LED （Support backlight adjustment） | |
| LED Life | 20000 hours | |
| Touch Screen | 4-wire resistive touch screen（Surface hardness 4H） | |
| CPU | 64-bit ,1GHz Main frequency, with 64MB DDR memory | |
| Memory | 128Mbyte SPI Nand Flash | |
| RTC | Real-time clock built-in | |
| Buzzer | Built-in | |
| Ethernet | Supported | |
| 4G Internet Of Things | Customized, according to customer requirement | |
| Audio Playback | Customized, according to customer requirement | |
| I2C External Keyboard | Customized, according to customer requirement | |
| Save Power Failure Data | Supported | |
| USB Port 1 | USB2.0 Device port (TYPE-C USB upgrade port) | |
| USB Port 2 | USB2.0 HOST port (USB flash disk upgrade port) | |
| Program Download Method | USB,U disk, Ethernet(Only supported for Ethernet type) | |
| U Disk | Supported | |
| Communication Port | Port 1:RS232,RS485,RS422 Port 2:RS485 Port 3:RS232 （Reserve） |
|
| Electrical Specifications |
Maximum Power Consumption | 3.5W |
| Voltage Range | DC 19-30V | |
| Power Protection | Have +/-4KV lightning surge protection capability | |
| The Allowed Loss Of Power | <5ms | |
| CE&ROHS | Comply with EN61000-6-2:2005, EN61000-6-4:2007 standards;Lightning surge+/-4KV,EFT:+/-1.2KV；Electrostatic contact discharge +/-5KV；Electrostatic air discharge+/-5KV. | |
| Environmental Specifications |
Operating Temperature | -10℃~50℃ |
| Storage Temperature | -30℃~70℃ | |
| Environmental Humidity | 10~90%RH(non-condensing) | |
| Vibration | 10-25Hz (X, Y, Z direction, 2g/30 min) | |
| Cooling Way | Natural air cooling | |
| The Other Parameters |
Protection Grade | The front panel conforms to IP65 (with flat plate cabinet installation), and the rear panel conforms to IP20 |
| Software | Upper：MagicStudio | |

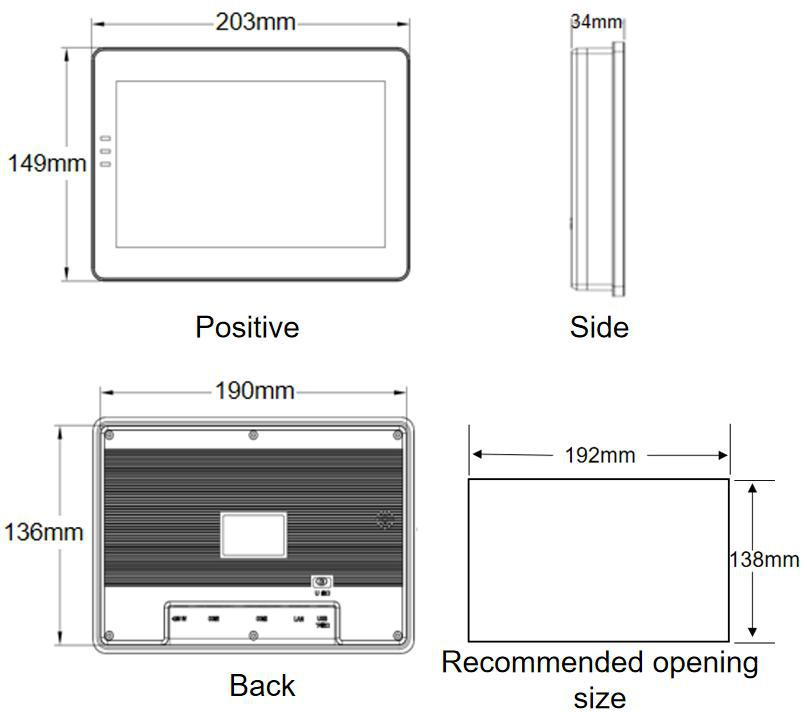

Mechanical Drawings
