USART/UART Serial Port LCD Module

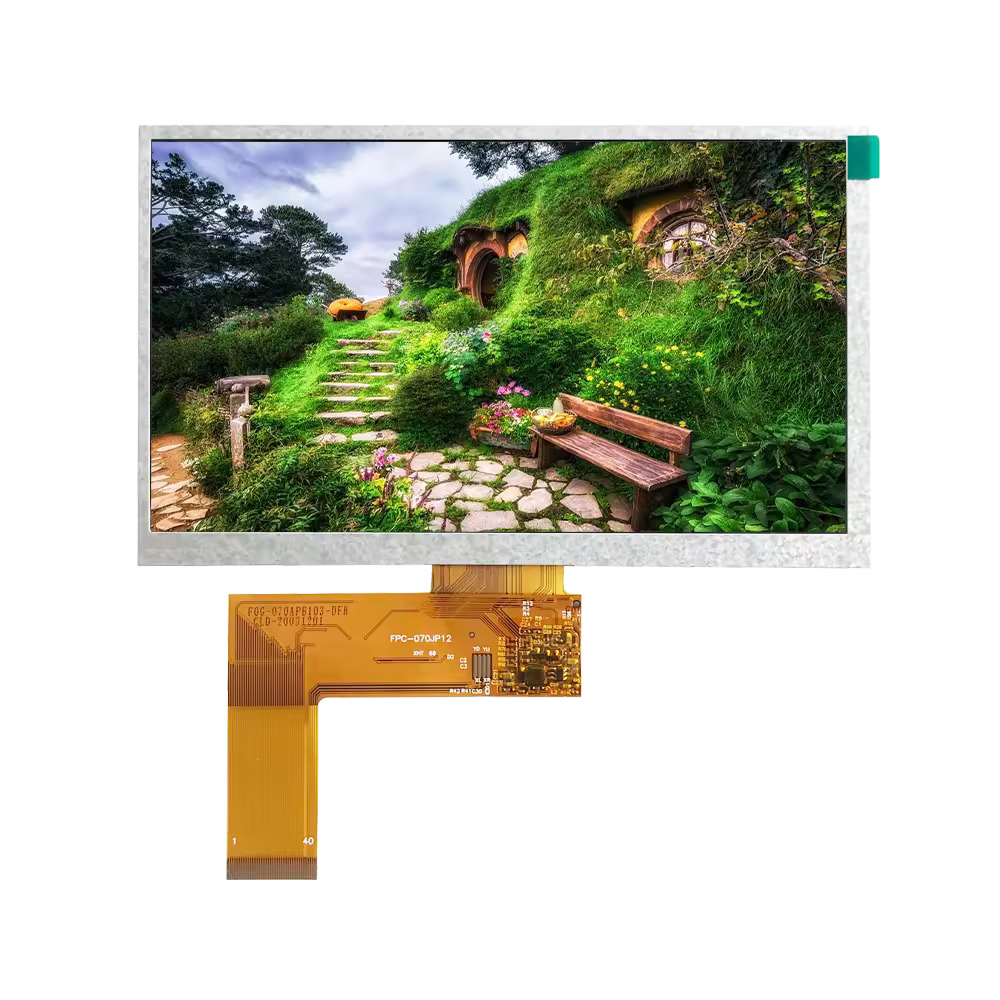

7 Inch Industrial UCOS Intelligent Display Terminal Support RS232 RS485 and TTL Port Communication
Model Definition（Help you understand the meaning of the model coding, it is not specific to this product）
Product Parameters
| Product Specifications | ||
| Hardware Performance | Model | AMT070W016-L800X480C-0TT,AMT070W016-L800X480C-1EEC,AMT070W016-L800X480R-0TT,AMT070W016-L800X480R-1DDC,AMT070W016-L800X480R-1DEC,AMT070W016-L800X480R-1EEC,AMT070W016-L800X480R-X1 |
| Operating System | UCOS | |
| Display Screen | 7TFT LCD | |
| Resolution (Px) | 800X480 | |
| Colour | 65536 | |
| Brightness | 250 cd/m2 | |
| Badly-Lit | LED (support backlight adjustment) | |
| LED Life | 20,000 hours | |
| Touch Screen | L800X480C：Capacitive touch screen；L800X480R：4-wire industrial resistance touch screen (surface hardness 4H) | |
| Central Processing Unit | 600MHz ARM9 Built-in 32MB DDR2Internal storage | |
| Memory | 64Mbyte SPI NAND Flash | |
| RTC | Supported except for 0TT,and X1 is optional | |
| Buzzer | Supported | |
| Power Failure Data Preservation | Supported | |
| USB Port | Not have | |
| Program Download Method | SD card | |
| Communication Port | 0TT:Serial port 1:TTL;Serial port 2:TTL；1EEC：Serial port 1:RS232;Serial port 2: RS232;1DDC:Serial port 1:RS485;Serial port 2:RS485;1DEC:Serial port 1:RS485;Serial port 2:RS232;1EEC:Serial port 1:RS232;Serial port 2: RS232;X1:1 serial port, RS232 or RS485 optional | |
| Electrical Specifications | Rated Power | The biggest3.5W |
| Rated Voltage | 0TT: DC 5V;1EEC,1DDC,1DEC,X1:DC9-30V | |
| Power Protection | Equipped with +/-250V lightning surge protection ability | |
| Allow Power Loss | <5ms | |
| CE&ROHS | Complies with EN61000-6-2:2005, EN61000-6-4:2007 standard; lightning surge +/-250V, group pulse +/-2KV; electrostatic contact discharge +/-4KV; electrostatic air discharge +/-8KV. | |
Mechanical Drawings

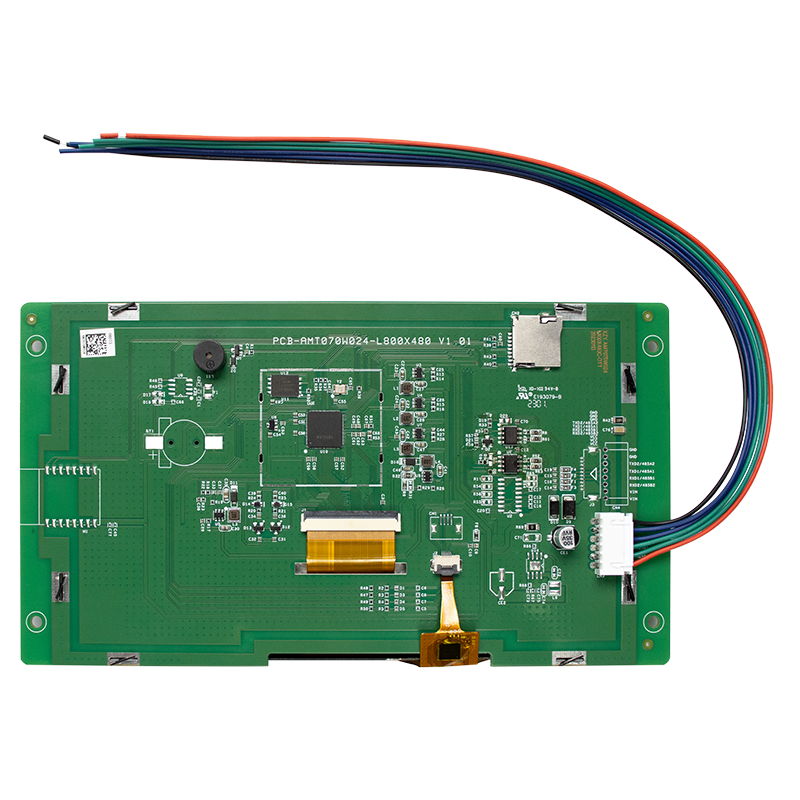

Product Details
Our Advantages
Size Customization: Available in a spectrum of dimensions ranging from 2.4 inches to 10.1 inches, offering adaptability to specific needs.
Resolution Customization: Configurable with a variety of screen resolutions such as 320X240, 480X320, 800X480, and others, tailored to diverse display requirements.
Flash Memory Customization: Adjustable flash storage options include 8 megabytes, 16 megabytes, 64 megabytes, 128 megabytes, providing ample capacity for data storage.
Communication Interface Flexibility: Supports a range of communication interfaces including TTL, RS485, and RS232, ensuring seamless connectivity options.
Customizable Control System: Tailored software and primary controller designed to meet precise application specifications.
Touch Panel Versatility: Compatible with both custom resistive and capacitive touch panel setups, offering flexibility in user interaction methods.
Auxiliary Function Customization: Offers flexibility in adjusting power supply voltage, external interface configurations, sensor capabilities, buzzer functionality, power outage protection mechanisms, real-time clock (RTC), and more, enhancing versatility across various applications.
Key Considerations for Choosing the Best LCD Module
Dimensions: Tailored to meet specific design and application requirements, considering both the outline dimension and active area.
Connectivity: Available in various interfaces such as TTL, RS485, and RS232, chosen based on device capabilities and system needs.
Temperature Handling: Implements measures to ensure prolonged service life and optimal performance across diverse temperature ranges.
Environmental Moisture: Ensures the product's protective capabilities are suitable for the humidity levels in its operational environment.
Vibration Resistance: Engineered to withstand severe vibrations and shaking encountered in the operational environment.
