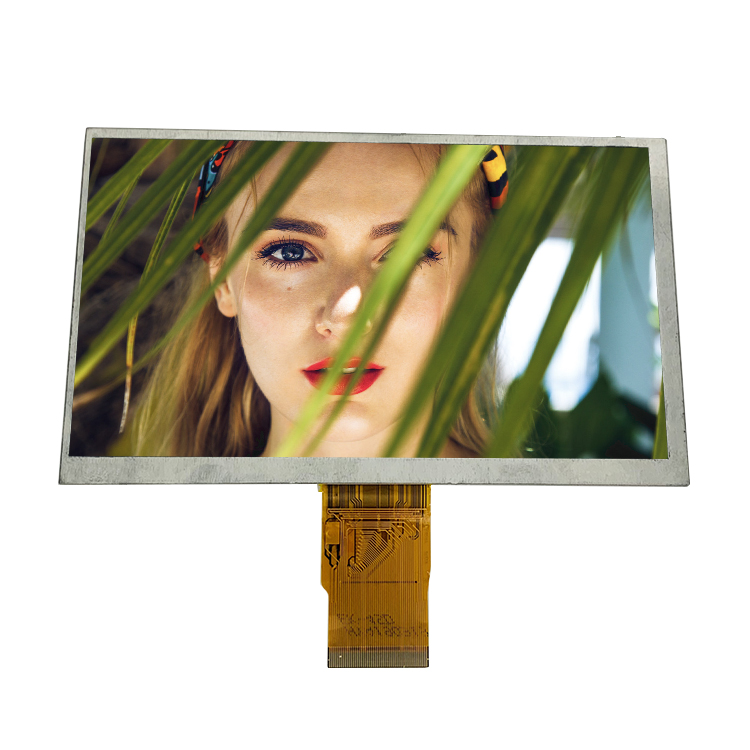

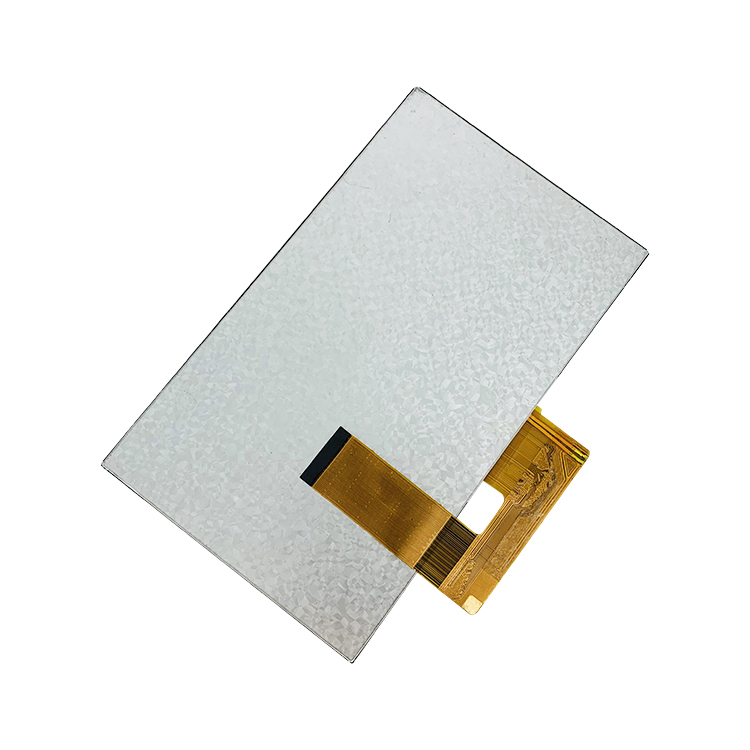

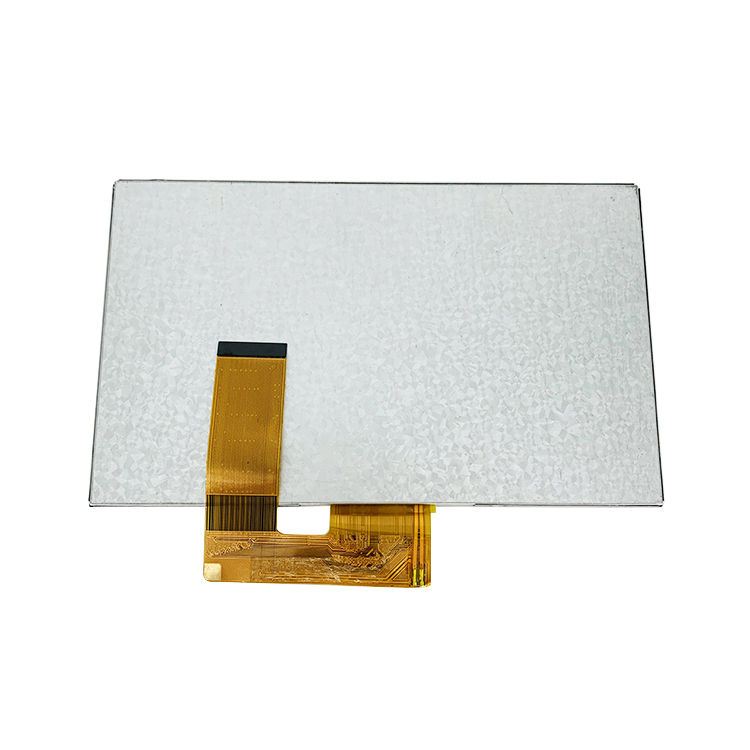

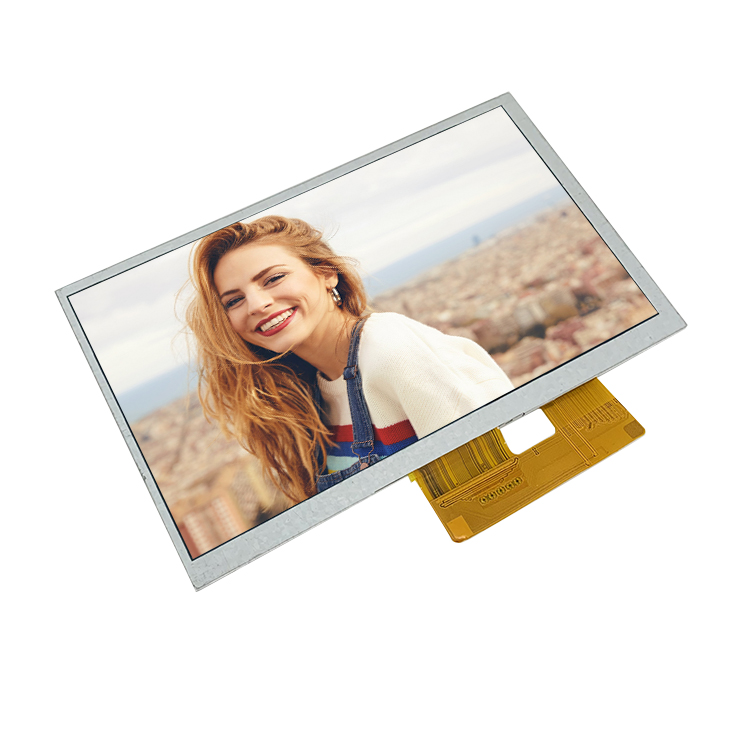

7 Inch LCD module Intelligent Display Terminal Support LVDS Interface

LCD Module

7 Inch LCD module Intelligent Display Terminal Support LVDS Interface

►Module No.: HYX070BHE40EW
►Size: 7 inch
►Resolution: 1024 × (RGB) × 600
►Brightness: 350
►Interface: LVDS
►LCD Type: TN

    Product Parameters

    General Specifications
    No. Item Specification
    1 LCD Size 7 inch
    2 Driver Element a-Si TFT active matrix
    3 Number of Pixels 1024 × (RGB) × 600
    4 Display Mode Normally WHITE
    5 Pixel Pitch 0.1506 (H) x 0.1432(V) mm
    6 LCD Type TN
    7 Brightness 350
    8 Active Area 154.2144(W) × 85.92(H) mm
    9 Module Size 164.9(W) ×100(H) ×5.5(D) mm
    10 View Direction 6
    11 Viewing angle 80/80/60/70
    12 Surface Treatment Anti-Glare
    13 Color Arrangement RGB-stripe
    14 Interface LVDS
    15 LCM Power Consumption 1.89W
    16 Drive IC EK79001HE+EK73217BCGA

    Pin Assignment
    Pin No Symbol I/O Function
    1 VCOM  P Common Voltage
    2-3 VDD P Power Supply
    4 NC - No connect
    5 RESET I Global reset pin. Active low to enter reset state. Keep VDD during operation.Normally pull high.
    6 UPDN I Vertical inversion
    7 SHLR I Horizontal inversion
    8 STBYB I Standy mode,Normally pulled high
    STBYB=”1”,normal operation
     STBYB=”0”,timing controller,source  driver will turn off,all output are High-z
    9 GND P Power ground
    10 NINC I -LVDS Differential Clock Input
    11 PINC I +LVDS Differential Clock Input
    12 GND P Power ground
    13 NIND0 I -LVDS differential data input
    14 PIND0 I +LVDS differential data input
    15 GND P Power ground
    16 NIND1 I -LVDS differential data input
    17 PIND1 I +LVDS differential data input
    18 GND P Power ground
    19 NIND2 I -LVDS differential data input
    20 PIND2 I +LVDS differential data input
    21 GND P Power ground
    22 NIND3 I -LVDS differential data input
    23 PIND3 I +LVDS differential data input
    24 GND P Power ground
    25 SELB I 6bit/8bit mode select
    SHLB=0,LVDS 8BIT
    SHLB=1,LVDS 6BIT
    26 GND P Power ground
    27 AVDD P Power for Analog Circuit
    28 GND P Power ground
    29 VGH P Gate ON Voltage
    30-31 NC - No connect
    32 VGL P Gate OFF Voltage
    33 GND P Power ground
    34 NC - No connect
    35-36 LED- P LED Cathode
    37-38 NC - No connect
    39-40 LED+  P LED Anode
    I: input; O: output; P: Power or Ground(0V)

    Typical Operation Condition

    Item

    Symbol

    Values

    Unit

    Min.

    Typ.

    Max.

    Power voltage

    VDD

    3

    3.3

    3.6

    V

    VGH

    17

    18

    19

    V

    VGL

    -6.6

    -6

    -5.4

    V

    AVDD

    9.2

    9.6

    10.2

    V

    VCOM

    3.1

    3.3

    3.6

    V

    Input logic high voltage

    VIH

    0.7 VDD

    -

    VDD

    V

    Input logic low voltage

    VIL

    0

    0.3 VDD

    V

    Test condition: GND=0V, TA=25℃


    Current For LED Driver

    Item

    Symbol

    Values

    Unit

    Remark

    Min.

    Typ.

    Max.

    Voltage for LED Backlight

    VL

    7.8

    9

    10.5

    V

    Note 1

    Crrent for LED Backlight

     IL

    -

    180

    -

    mA

    LED life time

    -

    20,000

    -

    -

    Hr

    Note 2

    Note1: VL=9V, IL=180mA (Backlight circuit: 3 series connection, 9 parallel connection), the ambient temperature is 25℃


    Optical Specifications

    Item

    Symbol

    Condition

    Values

    Unit

    Min.

    Typ.

    Max.

    Viewing angle(CR≥ 10)

    θL

    Φ=180°(9 o’clock)

    -

    80

    -

    degree

    θR

    Φ=0°(3 o’clock)

    -

    80

    -

    θT

    Φ=90°(12 o’clock)

    -

    60

    -

    θB

    Φ=270°(6 o’clock)

    -

    70

    -

    Response time

    TON+off

    Normal(θ=Φ=0°)

    -

    30

    40

    msec

    Contrast ratio

    CR

    500

    600

    -

    -

    Color chromaticity

    WX

    0.24

    0.29

    0.34

    -

    WY

    0.25

    0.3

    0.35

    -

    NTSC

    45

    50

    %

    Luminance

    L

    300

    350

    -

    cd/m²

    Luminance uniformity

    YU

    70

    80

    -

    Mechanical Drawings

    a7oq

    Product Details

    Experience unmatched precision with our 7-inch LCD screen, boasting a crisp 1024x600 resolution and vivid RGB hues. Crafted to offer breathtaking imagery, it revitalizes your display endeavors with outstanding sharpness and brilliance. Perfectly suited for personalized interfaces, handheld gadgets, and interactive panels, this screen excels in amplifying user engagement across technology devices, control systems, and diverse contexts where vivid, clear visuals are crucial. It supports numerous applications in smart homes, medical devices, biometric systems, integrated tech solutions, and portable gadgets where compactness and visual excellence are vital.

    Our Advantages

    Dimension Choices: Pick from an extensive selection of sizes tailored to your specific needs.

    Resolution Selection: Various screen resolutions are available to meet different display needs.

    Interface Options: Supports multiple interfaces, including RGB, LVDS, and MIPI, for flexible connectivity.

    Touch Panel Options: Compatible with both custom resistive and capacitive touch panels to accommodate diverse interaction styles.

    Adjustable Brightness: Modify brightness settings to meet your particular requirements.

    Shape Variability: Customizable displays are available in square, round, and other distinct shapes to suit your needs.

    Angle Customization: Viewing angles can be adjusted, with options for full-angle and partial-angle settings.

    Key Considerations for Choosing the Best LCD Module

    Dimensions: Configured to satisfy detailed design and application criteria, covering both external dimensions and functional areas.
    Interface Choices: Available in different connectivity standards including RGB, LVDS, and MIPI, based on device specifications and system requirements.
    Thermal Management: Implemented to deliver consistent performance across varied temperature environments.
    Humidity Resistance: Ensures protection against moisture levels in the operating environment.
    Shock Resistance: Constructed to resist high levels of vibration and impacts experienced in operational conditions.
