LCD Module

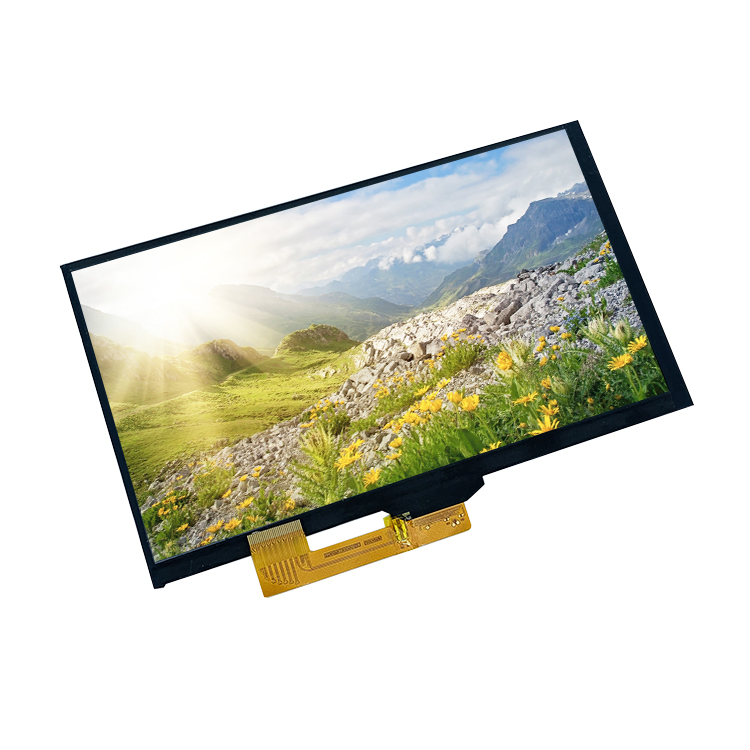

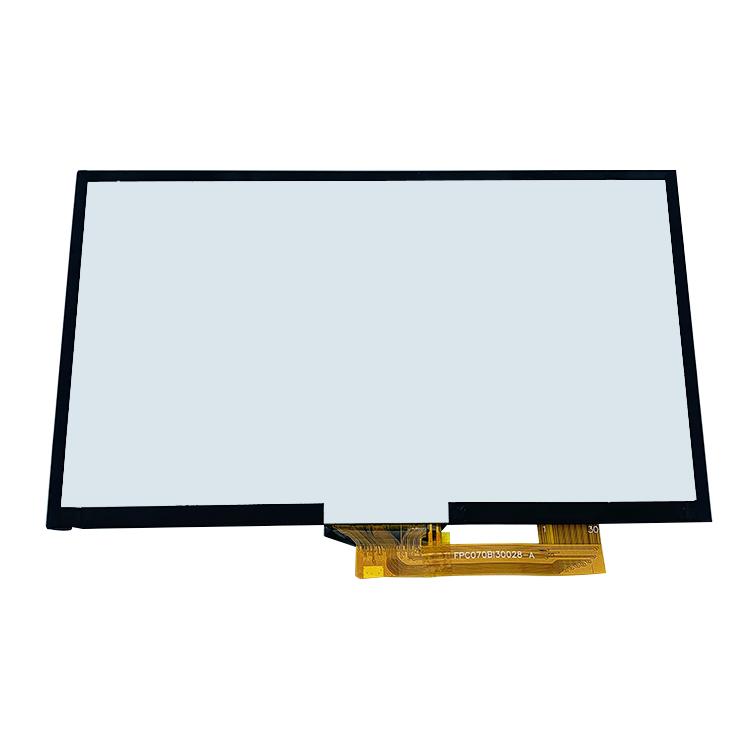

7 Inch LCD module Intelligent Display Terminal Support MIPI Interface
Product Parameters
| General Specifications | ||
| No. | Item | Specification |
| 1 | LCD Size | 7 inch |
| 2 | Driver Element | a-Si TFT active matrix |
| 3 | Number of Pixels | 1024 × (RGB) × 600 |
| 4 | Display Mode | Normally WHITE |
| 5 | Pixel Pitch | 0.1506 (H) x 0.1432(V) mm |
| 6 | LCD Type | TN |
| 7 | Brightness | 220 |
| 8 | Active Area | 154.2144(W) × 85.92(H) mm |
| 9 | Module Size | 164.2(W) ×97.2(H) ×2.6(D) mm |
| 10 | View Direction | 6 |
| 11 | Viewing angle | 80/80/60/70 |
| 12 | Surface Treatment | Anti-Glare |
| 13 | Color Arrangement | RGB-stripe |
| 14 | Interface | MIPI |
| 15 | LCM Power Consumption | 1.89W |
| 16 | Drive IC | EK79007AD3+EK73217BCGA |
| Pin Assignment | |||
| Pin No | Symbol | I/O | Function |
| 1-2 | VLED+ | P | Power for LED backlight (Anode) |
| 3 | VGH | P | Gate ON Voltage |
| 4 | VGL | P | Gate OFF Voltage |
| 5 | UPDN | I | Up/down selection |
| 6 | SHLR | I | Left / right selection |
| 7-8 | VLED- | P | Power for LED backlight (Cathode) |
| 9 | AVDD | P | Power for Analog Circuit |
| 10 | GND | P | Ground |
| 11 | MIPI_D3+ | I | Positive MIPI differential data inputs3+ |
| 12 | MIPI_D3- | I | Negative MIPI differential data inputs3- |
| 13 | GND | P | Ground |
| 14 | MIPI_D2+ | I | Positive MIPI differential data inputs2+ |
| 15 | MIPI_D2- | I | Negative MIPI differential data inputs2- |
| 16 | GND | P | Ground |
| 17 | MIPI_CLK+ | I | Positive MIPI differential clock inputs+ |
| 18 | MIPI_CLK- | I | Negative MIPI differential clock inputs- |
| 19 | GND | P | Ground |
| 20 | MIPI_D1+ | I | Positive MIPI differential data inputs1+ |
| 21 | MIPI_D1- | I | Negative MIPI differential data inputs1- |
| 22 | GND | P | Ground |
| 23 | MIPI_D0+ | I | Positive MIPI differential data inputs0+ |
| 24 | MIPI_D0- | I | Negative MIPI differential data inputs0- |
| 25 | GND | P | Ground |
| 26 | STBYB | I | Standby mode, normally pull high STBYB="1", normally operation STBYB="0", timing control, source driver will turn off |
| 27 | RESET | P | Global reset pin. |
| 28 | VDD | P | Power for Digital Circuit |
| 29 | VDD | P | Power for Digital Circuit |
| 30 | VCOM | P | Common voltage |
| I: input; O: output; P: Power or Ground(0V). | |||
|
Typical Operation Condition |
|||||
|
Item |
Symbol |
Values |
Unit |
||
|
Min. |
Typ. |
Max. |
|||
|
Power voltage |
VDD |
3 |
3.3 |
3.6 |
V |
|
VGH |
17 |
18 |
19 |
V |
|
|
VGL |
-6.6 |
-6 |
-5.4 |
V |
|
|
AVDD |
9.2 |
9.6 |
10.2 |
V |
|
|
VCOM |
3.1 |
3.3 |
3.6 |
V |
|
|
Input logic high voltage |
VIH |
0.7 VDD |
- |
VDD |
V |
|
Input logic low voltage |
VIL |
0 |
0.3 VDD |
V |
|
|
Test condition: GND=0V, TA=25 ℃ |
|||||
|
Current For LED Driver |
||||||
|
Item |
Symbol |
Values |
Unit |
Remark |
||
|
Min. |
Typ. |
Max. |
||||
|
Voltage for LED Backlight |
VL |
7.8 |
9 |
10.5 |
V |
Note 1 |
|
Crrent for LED Backlight |
IL |
- |
180 |
- |
mA |
|
|
LED life time |
- |
20,000 |
- |
- |
Hr |
Note 2 |
|
Note1: VL=9V, IL=180mA (Backlight circuit: 3 series connection, 9 parallel connection), the ambient temperature is 25℃ |
||||||
|
Note 2: The “LED life time” is defined as the module brightness decrease to 50% original brightness at Ta=25℃ and 1/2 rared current . The LED lifetime could be decreased if operating IL is larger than 180 mA. |
||||||
|
Optical Specifications |
||||||
|
Item |
Symbol |
Condition |
Values |
Unit |
||
|
Min. |
Typ. |
Max. |
||||
|
Viewing angle(CR≥ 10) |
θL |
Φ=180°(9 o’clock) |
- |
80 |
- |
degree |
|
θR |
Φ=0°(3 o’clock) |
- |
80 |
- |
||
|
θT |
Φ=90°(12 o’clock) |
- |
60 |
- |
||
|
θB |
Φ=270°(6 o’clock) |
- |
70 |
- |
||
|
Response time |
TON+off |
Normal(θ=Φ=0°) |
- |
30 |
40 |
msec |
|
Contrast ratio |
CR |
500 |
600 |
- |
- |
|
|
Color chromaticity |
WX |
0.24 |
0.29 |
0.34 |
- |
|
|
WY |
0.25 |
0.3 |
0.35 |
- |
||
|
NTSC |
45 |
50 |
% |
|||
|
Luminance |
L |
170 |
220 |
- |
cd/m² |
|
|
Luminance uniformity |
YU |
70 |
80 |
- |
||
Mechanical Drawings
Product Details
Discover exceptional visual fidelity with our 7-inch LCD screen, featuring a high-resolution 1024x600 and vivid RGB colors. Designed to offer remarkable clarity, this screen enhances your projects with superb detail and brightness. Ideal for tailored interfaces, portable gadgets, and interactive panels, it excels in enriching user experiences across various technological devices, control interfaces, and applications where sharp, vibrant visuals are crucial. Perfect for diverse uses in smart home systems, medical technology, biometric devices, integrated solutions, and compact electronics where high-quality display performance is paramount.
Our Advantages
Size Selection: Opt for a wide range of dimensions designed to fit your precise needs.
Resolution Variability: Choose from various resolutions to address different display requirements.
Interface Support: Features support for multiple interfaces like RGB, LVDS, and MIPI for flexible connectivity.
Touch Panel Adaptability: Compatible with custom resistive and capacitive touch panels for varied user interaction preferences.
Brightness Settings: Adjust brightness to meet your specific requirements and preferences.
Shape Options: Includes customizable shapes such as square, round, and other unique designs.
Viewing Angle Flexibility: The display angle can be customized with both full-angle and partial-angle settings..
