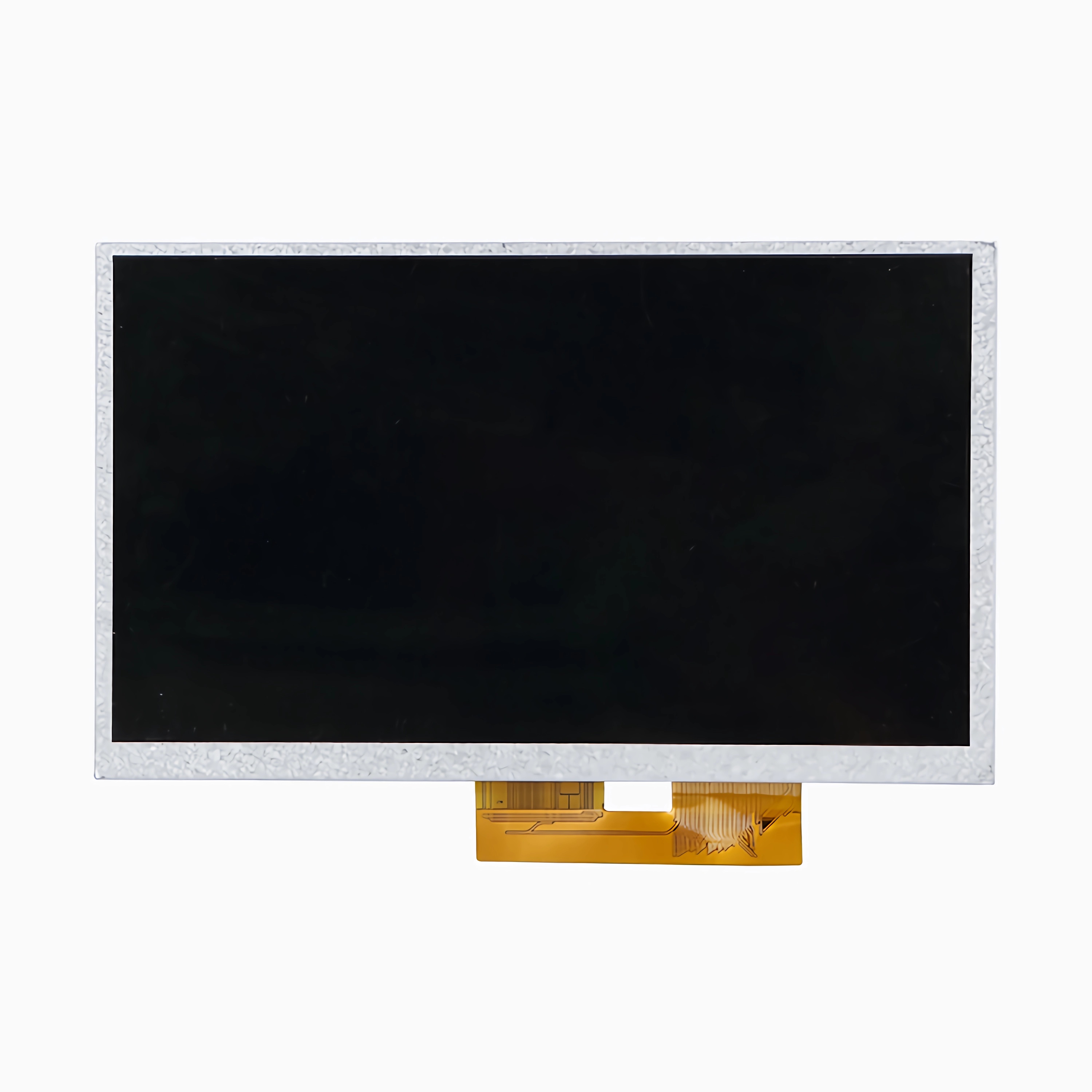

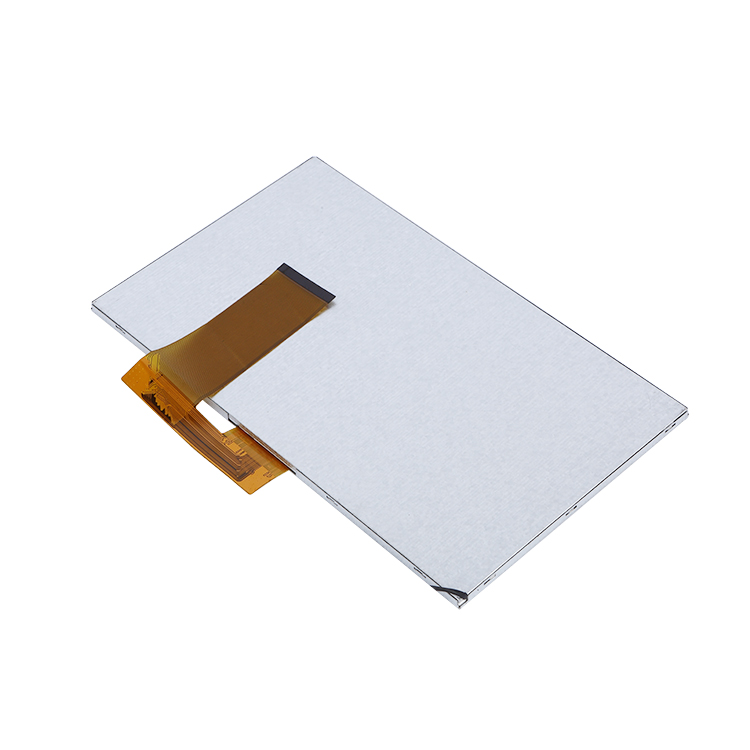

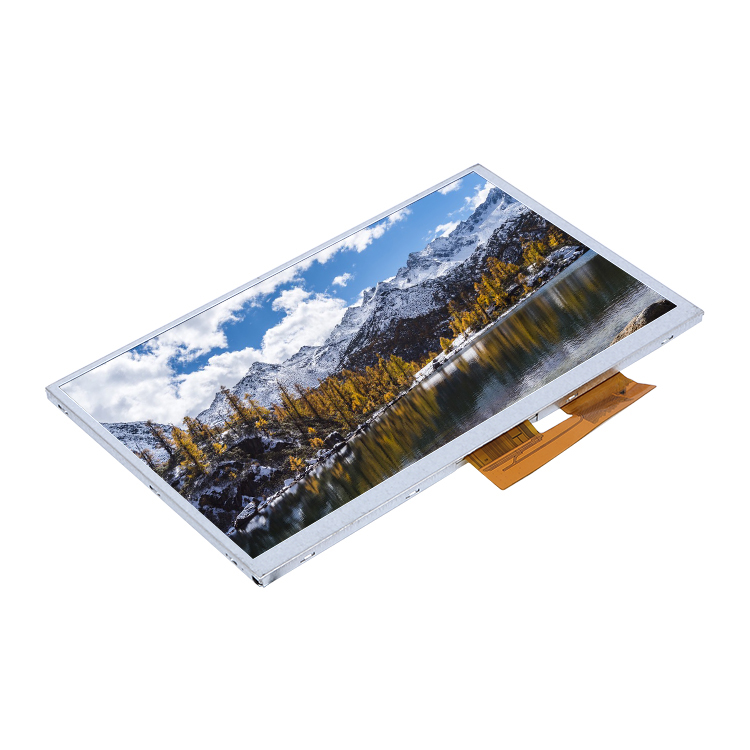

9 Inch LCD module Intelligent Display Terminal Support LVDS Interface

General Specifications

No.

Item

Specification

1

LCD Size

9 inch

2

Driver Element

a-Si TFT active matrix

3

Number of Pixels

1024 × (RGB) × 600

4

Display Mode

Normally White

5

Pixel Pitch

0.192 (H) x 0.190 (V) mm

6

LCD Type

IPS

7

Brightness

350-400

8

Active Area

196.608(W) ×114.15(H) mm

9

Module Size

210.7(W) ×126.5(H) ×5.0(D) mm

10

View Direction

6

11

Viewing angle

80/80/80/80

12

Surface Treatment

Anti-Glare

13

Color Arrangement

RGB-stripe

14

Interface

LVDS

15

LCM Power Consumption

2.52W

16

Drive IC

EK79001+EK73215

Pin Assignment

Pin No

Symbol

I/O

Function

1

VCOM

 P

Common Voltage

2-3

VDD

P

Power Supply

4

NC

-

No connect

5

RESET

I

Global reset pin. Active low to enter reset state. Keep VDD during operation.Normally pull high.

6

UPDN

I

Vertical inversion

7

SHLR

I

Horizontal inversion

8

STBYB

I

Standy mode,Normally pulled high

STBYB=”1”,normal operation

 STBYB=”0”,timing controller,source  driver will turn off,all output are High-z

9

GND

P

Power ground

10

NINC

I

-LVDS Differential Clock Input

11

PINC

I

+LVDS Differential Clock Input

12

GND

P

Power ground

13

NIND0

I

-LVDS differential data input

14

PIND0

I

+LVDS differential data input

15

GND

P

Power ground

16

NIND1

I

-LVDS differential data input

17

PIND1

I

+LVDS differential data input

18

GND

P

Power ground

19

NIND2

I

-LVDS differential data input

20

PIND2

I

+LVDS differential data input

21

GND

P

Power ground

22

NIND3

I

-LVDS differential data input

23

PIND3

I

+LVDS differential data input

24

GND

P

Power ground

25

SELB

I

6bit/8bit mode select

SHLB=0,LVDS 8BIT

SHLB=1,LVDS 6BIT

26

GND

P

Power ground

27

AVDD

P

Power for Analog Circuit

28

GND

P

Power ground

29

VGH

P

Gate ON Voltage

30-31

NC

-

No connect

32

VGL

P

Gate OFF Voltage

33

GND

P

Power ground

34-40

NC

-

No connect

I: input; O: output; P: Power or Ground(0V)

Absolute Maximum Ratings

Item

Symbol

Values

Unit

Remark

Min.

Max.

Power voltage

VDD

-0.5

5

V

VSS=0V, TA=25℃

Operation Temperature

T_OP

-10

60

℃

Storage Temperature

T_ST

-20

70

℃

Note1 : The absolute maximum rating values of this product are not allowed to be exceeded at any times. Should a module be used with any of the absolute maximum ratings exceeded, the characteristics of the module may not be recovered, or in an extreme  case, the module may be permanently destroyed

Typical Operation Condition

Item

Symbol

Values

Unit

Min.

Typ.

Max.

Power voltage

VDD

3

3.3

3.6

V

VGH

17

18

19

V

VGL

-9

-8

-7

V

AVDD

10.2

10.8

11.4

V

VCOM

4.05

4.25

4.45

V

Input logic high voltage

V_IH

0.8 V_DD

-

V_DD

V

Input logic low voltage

V_IL

0

0.2V_DD

V

Test condition: GND=0V, TA=25 ℃

Current For LED Driver

Item

Symbol

Values

Unit

Remark

Min.

Typ.

Max.

Voltage for LED Backlight

V_L

15.8

18

21

V

Note 1

Crrent for LED Backlight

 I_L

-

120

-

mA

LED life time

-

20,000

-

-

Hr

Note 2

 Note1: VL=18V, IL=120mA (Backlight circuit: 6series connection, 6 parallel connection), the ambient temperature is 25℃

Note 2: The “LED life time” is defined as the module brightness decrease to 50% original brightness at Ta=25℃ and 1/2 rared current . The LED lifetime could be decreased if operating IL is larger than 120 mA

Optical Specifications

Item

Symbol

Condition

Values

Unit

Min.

Typ.

Max.

Viewing angle(CR≥ 10)

θ_L

Φ=180°(9 o’clock)

60

70

-

degree

θ_R

Φ=0°(3 o’clock)

60

70

-

θ_T

Φ=90°(12 o’clock)

40

50

-

θ_B

Φ=270°(6 o’clock)

60

70

-

Response time

T_ON

Normal(θ=Φ=0°)

-

10

15

msec

T_OFF

15

20

msec

Contrast ratio

CR

-

500

-

-

Color chromaticity

W_X

0.24

0.29

0.34

-

W_Y

0.25

0.3

0.35

-

NTSC

60

%

Luminance

L

400

450

-

cd/m²

Luminance uniformity

Y_U

70

75

-
