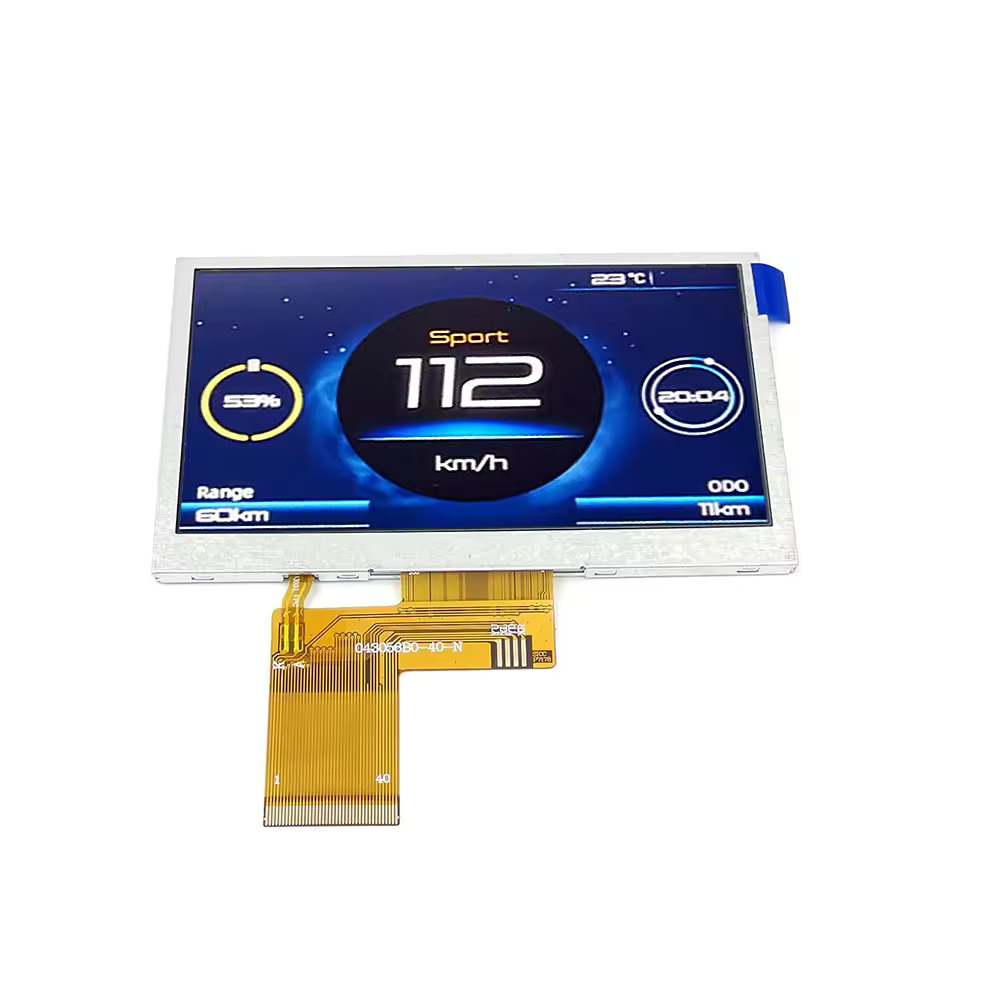

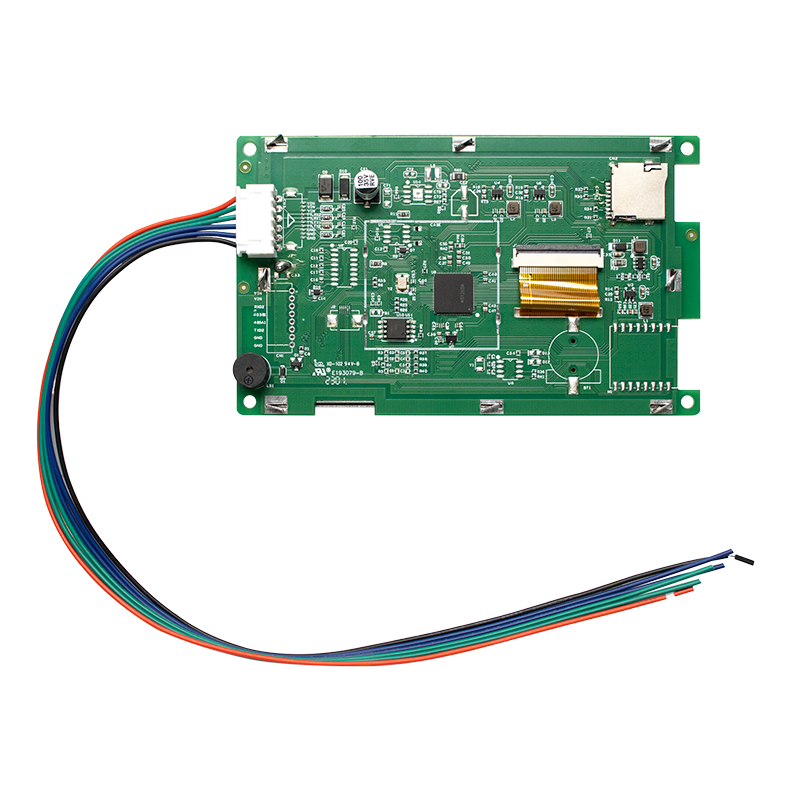

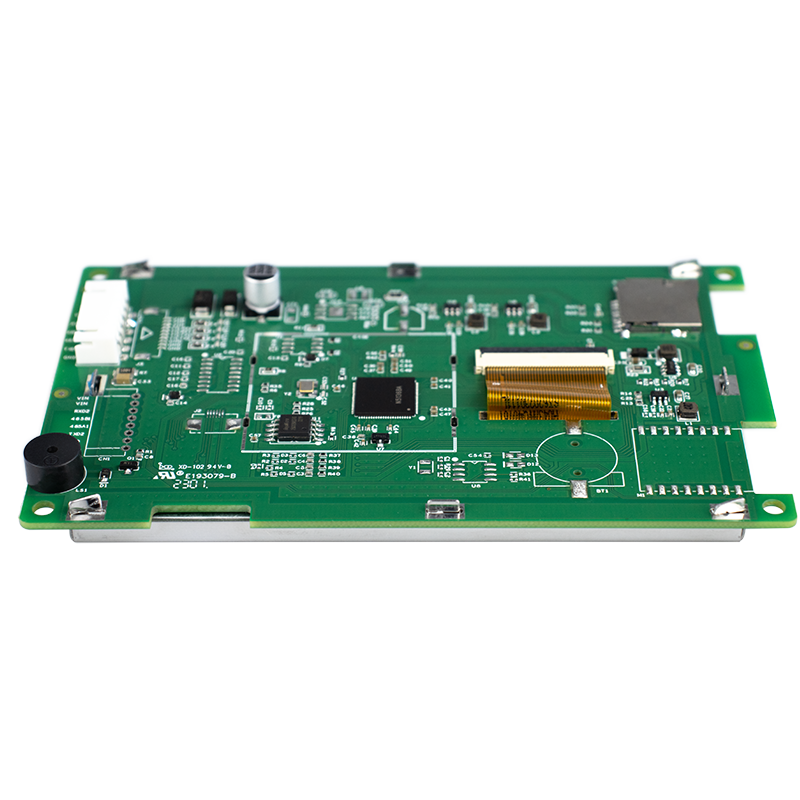

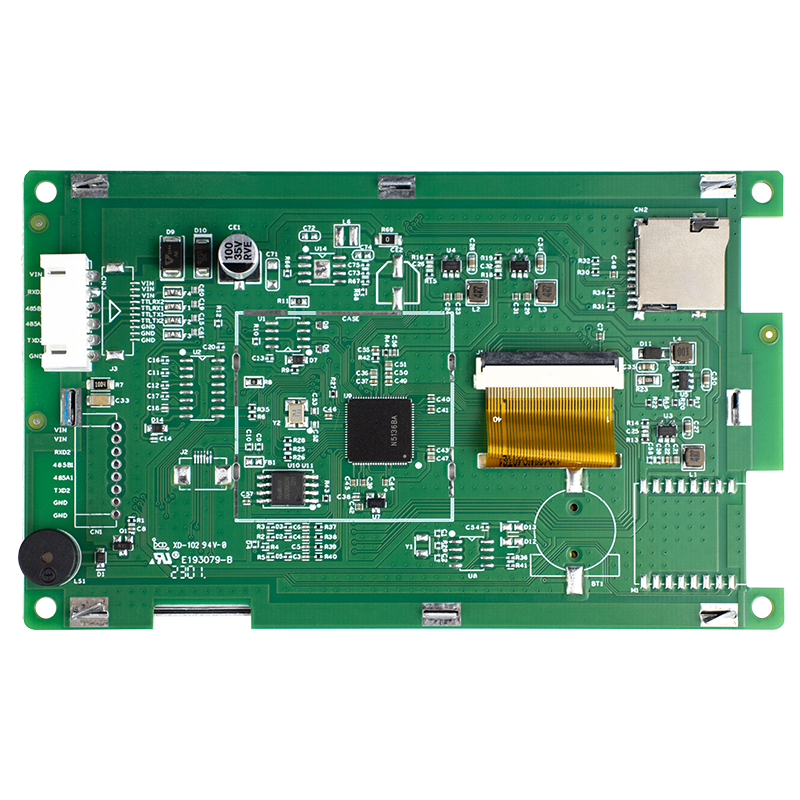

4.3 Inch Industrial UCOS Intelligent Display Terminal Support RS232 RS485 and TTL Port Communication

USART/UART Serial Port LCD Module

4.3 Inch Industrial UCOS Intelligent Display Terminal Support RS232 RS485 and TTL Port Communication

Module No.:AMT043W024-L480X272R-0TT

Size: 4.3 inch

Resolution: 480 x 272 dots

Colour: 65536

Operating System: UCOS

Brightness(cd/m²): 250

    Model Definition(Help you understand the meaning of the model coding, it is not specific to this product)

    1 (1)gvc

    Product Parameters

    Product Specifications
    Hardware Performance Model AMT043W024-L480X272C-0TT,AMT043W024-L480X272R-0TT,AMT043W024-L480X272R-1DEC,AMT043W024-L480X272C-1DEC
    Operating System UCOS
    Display Screen 4.3TFT LCD
    Resolution (Px) 480X272
    Colour 65536
    Brightness 250 cd/m2
    Badly-Lit LED (support backlight adjustment)
    LED Life 20,000 hours
    Touch Screen 480X272R: 4-wire industrial resistance touch screen (surface hardness 4H),480X272C: Capacitive touch screen
    Central Processing Unit 600MHz ARM9   Built-in 32MB DDR2Internal storage
    Memory 16Mbyte SPI NOR Flash
    RTC 0TT: Not supported; 1DEC: Supported
    Buzzer Supported
    Power Failure Data Preservation Supported
    USB Port Not have
    Program Download Method SD card
    Communication Port 0TT:Serial port 1: TTL;Serial port 2: TTL;1DEC: Serial port 1: RS485; Serial port 2: RS232
    Electrical Specifications Rated Power The biggest2W
    Rated Voltage 0TT: DC 5V; 1DEC: 9-30V
    Power Protection Equipped with +/-250V lightning surge protection ability
    Allow Power Loss <5ms
    CE&ROHS Complies with EN61000-6-2:2005, EN61000-6-4:2007 standard; lightning surge +/-250V, group pulse +/-2KV; electrostatic contact discharge +/-4KV; electrostatic air discharge +/-8KV.
    Environmental Specifications Working Temperature -10℃~50℃
    Storage Temperature -30℃~70℃
    Ambient Humidity 10~90% RH (no condensation)
    Shock Resistance 10-25Hz (X, Y, Z direction, 2g/30 minutes)
    Cooling Method Natural air cooling
    Other Parameters Protection Level The front panel is compliant with IP65 (with flat enclosure installation), and the rear shell of the fuselage complies with IP20.
    Net Weight Of The Whole Machine 200g
    Corresponding Software Upper position:HMIStudio5.0

    Mechanical Drawings

    1 (2)q0b

    Product Details

    This screen features a 4.3-inch display with a resolution of 480x272 pixels, equipped with a serial port interface. It is  offering compact size and clear visual output suitable for various environments,such as healthcare, governmental oversight, transactional technologies, home automation, fiscal oversight, and supply chain logistics.

    Our Advantages

    Customizablel Size: Customizable in various sizes ranging from 2.4 inches to10.1inches.
    Customizable resolution:Customizable in different resolusion such as 320X240,480X320,800X480 and so on.
    Customizable Flash:Customizable in 8Mbyte,16Mbyte,64Mbyte,128Mbyte and so on.
    Customizable communication interface: Supports various interfaces such as TTL、RS485 and RS232.
    Customizable Control system: Customizable in software and main controller.
    Touch Panel Options: Compatible with both custom resistive and capacitive touch panels.
    Customizable auxiliary functions:Customizable in power supply voltage, external interface, sensor, buzzer, power loss protection, RTC and so on.

    Key Considerations for Choosing the Best LCD Module

    Size: Consider both the outline dimension and active area based on design and application requirements.
    Interface: Available in various forms such as TTL、RS485 and RS232, chosen based on device resources and system requirements.
    Temperature: Mechanisms in place to ensure long service life and performance under varying temperature ranges.
    Ambient Humidity:Ensure that the protection level of the product matches the humidity level of the environment.
    Shock Resistance:Designed to resist severe vibrations and shaking in the working environment.

    Application

    Applicationo2f

    Productions Process

    Production Process1-LCD Workshop6qkProduction Process2-TP WorkShopwxr

    Reliability Test

    Reliability Testjb0

    Certificate

    Certificateo1w
