USART/UART Serial Port LCD Module
0102030405
4.3 Inch Industrial UCOS Intelligent Display Terminal Support RS232 RS485 and TTL Port Communication

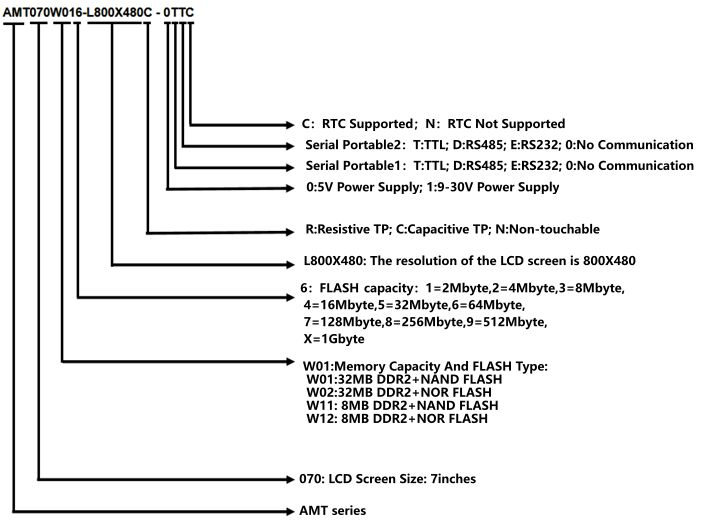

Model Definition（Help you understand the meaning of the model coding, it is not specific to this product）
Product Parameters
| Hardware Performance | Model | AMT043W024-L800X480C-0TT，AMT043W024-L800X480R-0TT，AMT043W024-L800X480R-1DEC |
| Operating System | UCOS | |
| Display Screen | 4.3TFT LCD | |
| Resolution (Px) | 800X480 | |
| Colour | 65536 | |
| Brightness | 250 cd/m2 | |
| Badly-Lit | LED (support backlight adjustment) | |
| LED Life | 20,000 hours | |
| Touch Screen | L800X480C: Capacitive touch screen;L800X480R:4-wire industrial resistance touch screen (surface hardness 4H) | |
| Central Processing Unit | 600MHz ARM9 Built-in 32MB DDR2Internal storage | |
| Memory | 16Mbyte SPI NOR Flash | |
| RTC | 0TT: Not supported; 1DEC: Supported | |
| Buzzer | Supported | |
| Power Failure Data Preservation | Supported | |
| USB Port | Not have | |
| Program Download Method | SD card | |
| Communication Port | 0TT:Serial port 1: TTL;Serial port 2: TTL;1DEC: Serial port 1: RS485; Serial port 2: RS232 | |
| Electrical Specifications | Rated Power | The biggest2W |
| Rated Voltage | 0TT: DC 5V; 1DEC: 9-30V | |
| Power Protection | Equipped with +/-250V lightning surge protection ability | |
| Allow Power Loss | <5ms | |
| CE&ROHS | Complies with EN61000-6-2:2005, EN61000-6-4:2007 standard; lightning surge +/-250V, group pulse +/-2KV; electrostatic contact discharge +/-4KV; electrostatic air discharge +/-8KV. | |
| Environmental Specifications | Working Temperature | -10℃~50℃ |
| Storage Temperature | -30℃~70℃ | |
| Ambient Humidity | 10~90% RH (no condensation) | |
| Shock Resistance | 10-25Hz (X, Y, Z direction, 2g/30 minutes) | |
| Cooling Method | Natural air cooling | |
| Other Parameters | Protection Level | The front panel is compliant with IP65 (with flat enclosure installation), and the rear shell of the fuselage complies with IP20. |
| Net Weight Of The Whole Machine | 200g | |
| Corresponding Software | Upper position:HMIStudio5.0 |

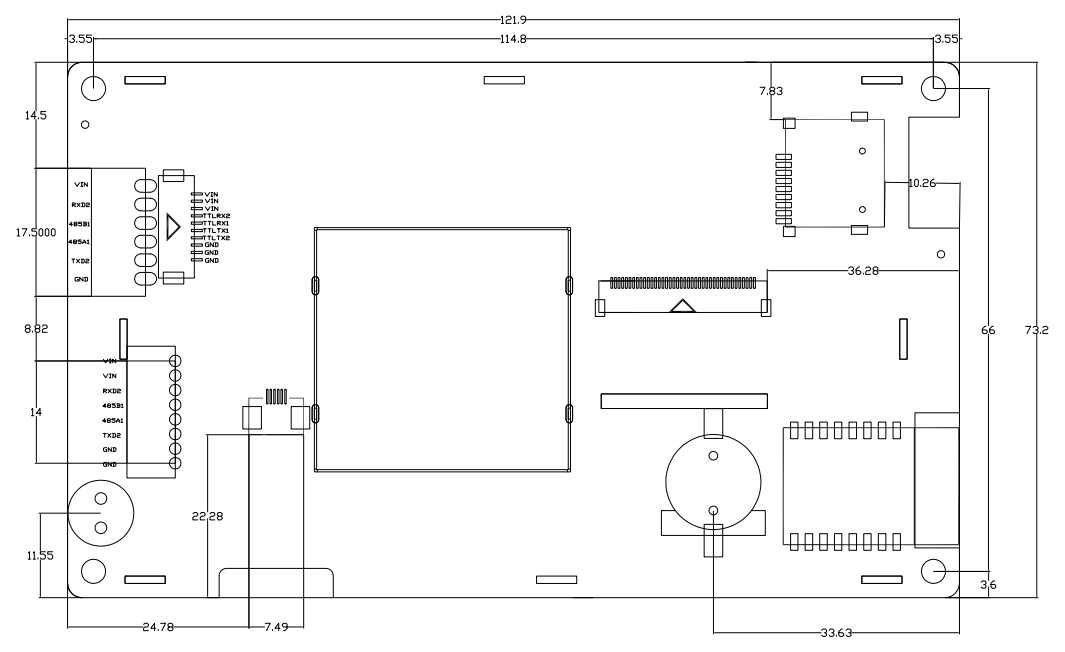

Mechanical Drawings
Product Details
This 4.3-inch industrial screen boasts a high-resolution display of 800x480 pixels, making it ideal for detailed visual applications and widely used in medical care, public administration, payment systems, smart homes, financial management, and logistics management.
Our Advantages
Size Customization: Available in a range of dimensions from 2.4 inches up to 10.1 inches, adaptable to suit specific requirements.
Resolution Customization: Configurable with various resolutions such as 320X240, 480X320, 800X480, and others, tailored to different display needs.
Flash Memory Customization: Adjustable flash memory options include 8Mbyte, 16Mbyte, 64Mbyte, 128Mbyte, allowing for ample storage capacity.
Communication Interface Flexibility: Supports diverse communication interfaces like TTL, RS485, and RS232, facilitating seamless connectivity.
Customizable Control System: Tailorable software and primary controller to meet specific application demands.
Touch Panel Versatility: Compatible with both custom resistive and capacitive touch panel configurations, ensuring versatility in user interaction.
Auxiliary Function Customization: Options for customizing power supply voltage, external interfaces, sensors, buzzer settings, power loss protection, RTC, and more, enhancing functionality across various applications.
Key Considerations for Choosing the Best LCD Module
Size: Tailored to fit both the overall dimensions and the active display area according to specific design and application needs.
Connection: Offered in diverse types including TTL, RS485, and RS232, selected based on device capabilities and system demands.
Temperature Management: Implements measures to guarantee extended operational lifespan and performance across a wide range of temperature conditions.
Environmental Moisture: Ensures product protection matches the humidity levels found in its operational surroundings.
Vibration Resilience: Engineered to withstand intense vibrations and shaking encountered in operational environments.
Application

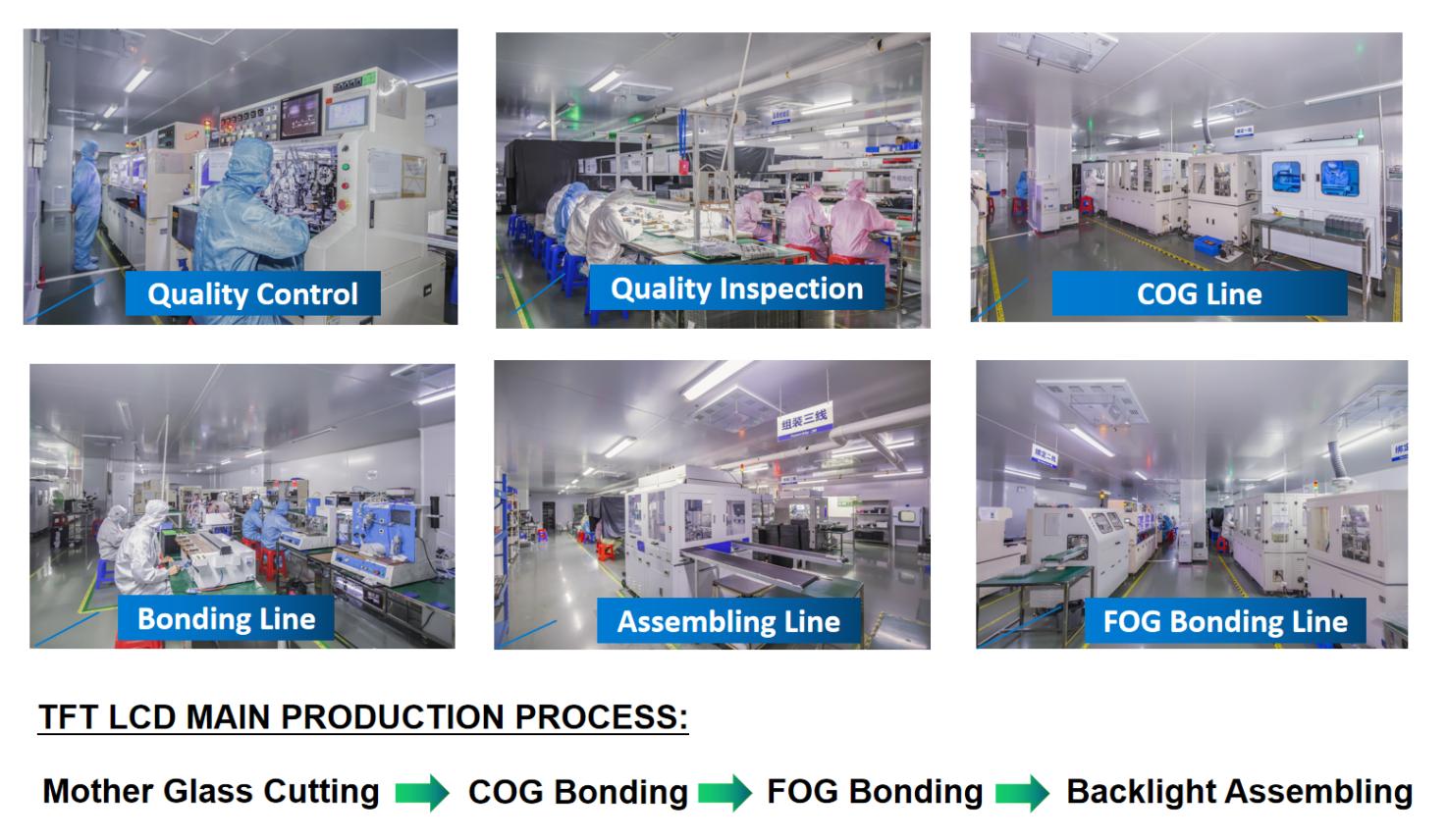

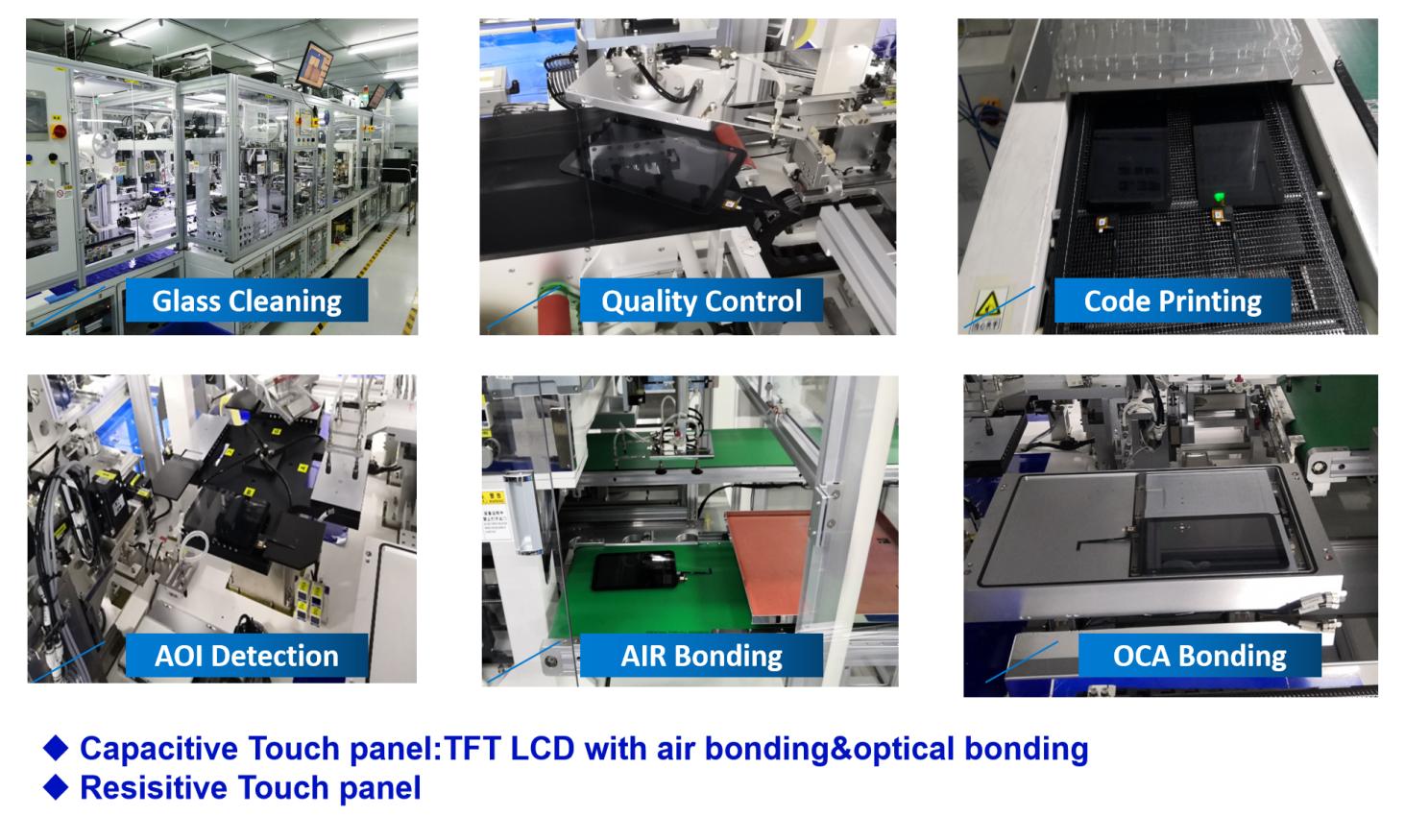

Productions Process

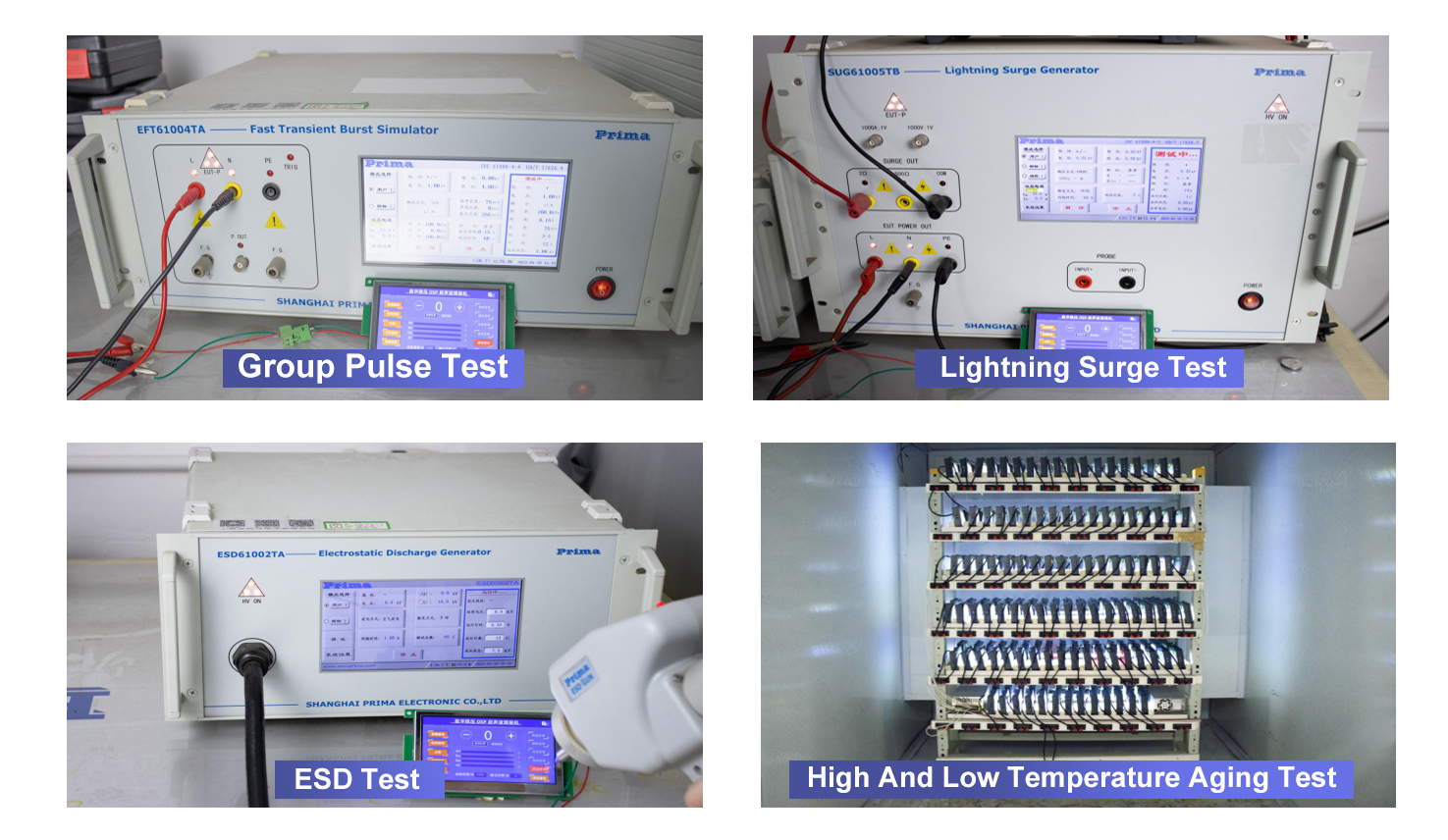

Reliability Test
Certificate
